Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

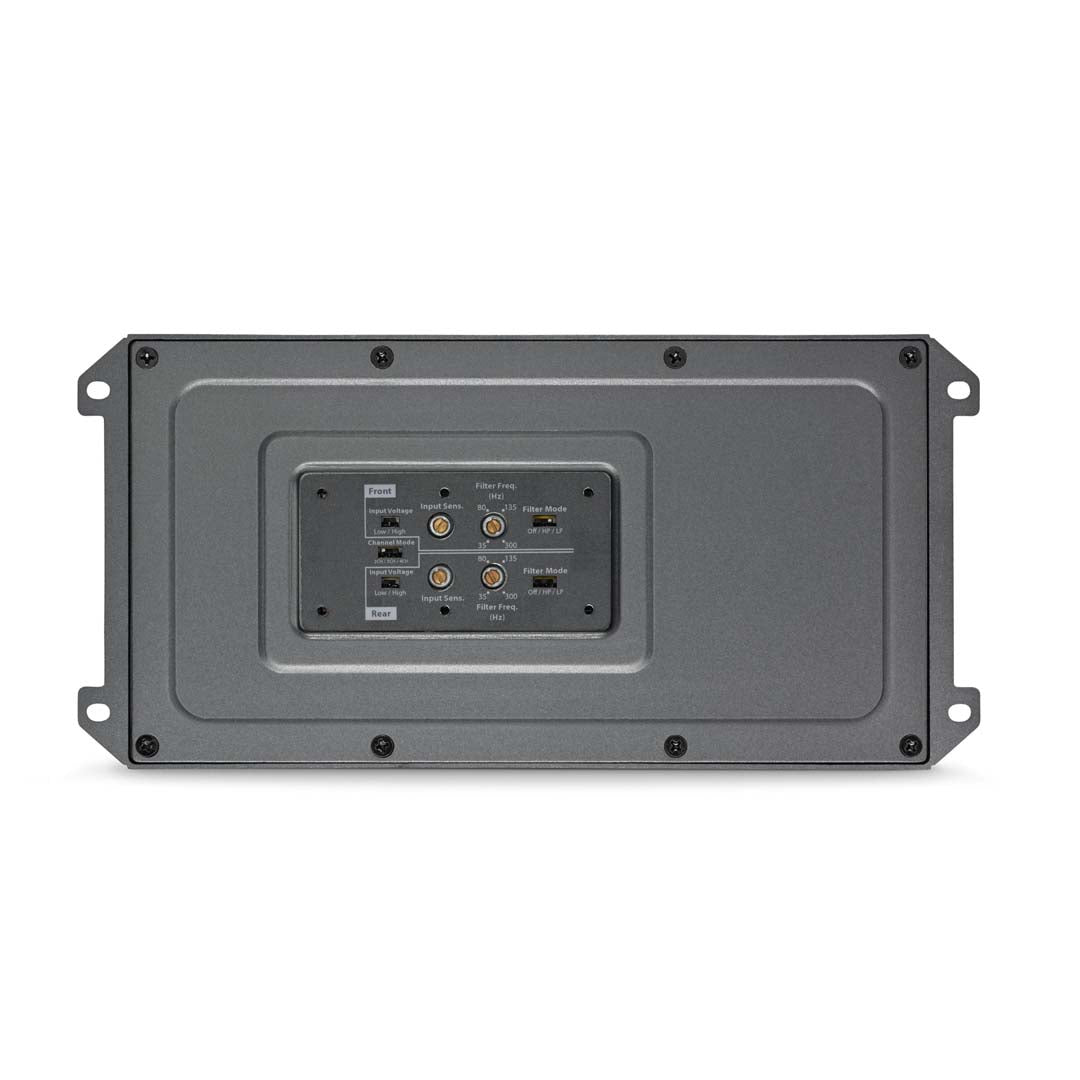

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
Weather Resistance | IPX6 |
Number of Channels | 4 |
Class | D |
Peak Power Rating (Watts) | |
RMS Power Rating (Watts x Channels) - 4 Ohms | 70 x 4 |
RMS Power Rating (Watts x Channels) - 2 Ohms | 125 x 4 |
RMS Power Rating - Bridged | 250 x 2 |
Minimum Impedance Unbridged (Ohms) | 2 |
Minimum Impedance Bridged (Ohms) | 4 |
THD at Rated RMS Power | 1% |
Bulit-in Crossover - Low Pass | Yes |
Built-in Crossover - High Pass | Yes |
High Pass Crossover Frequency (Hz) | 35-300Hz |
Low Pass Crossover Frequency (Hz) | 35-300Hz |
Signal-to-Noise Ratio | 88dB |
Bass Boost | No |
Bass Remote Included | No |
Fuse Rating | 50A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
