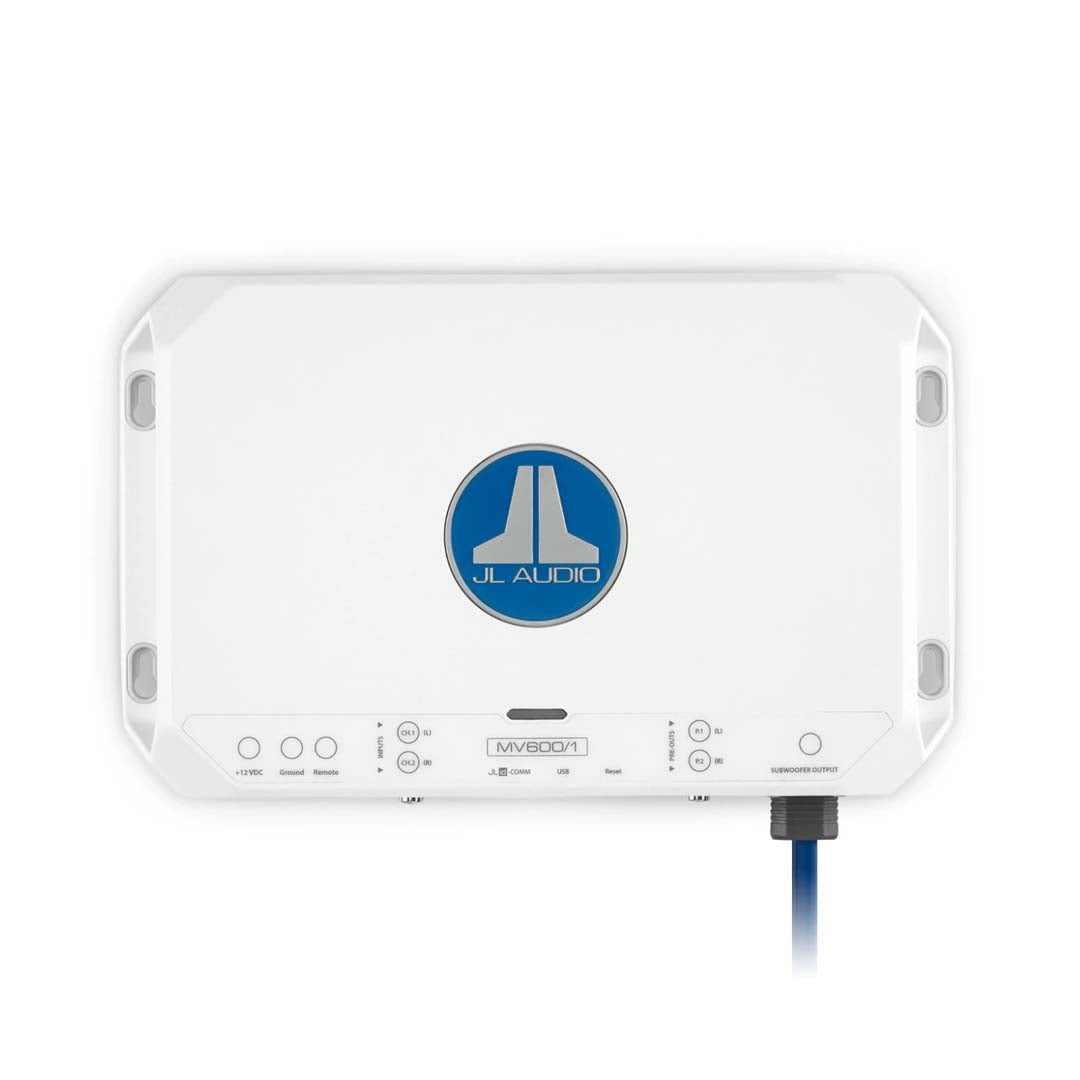

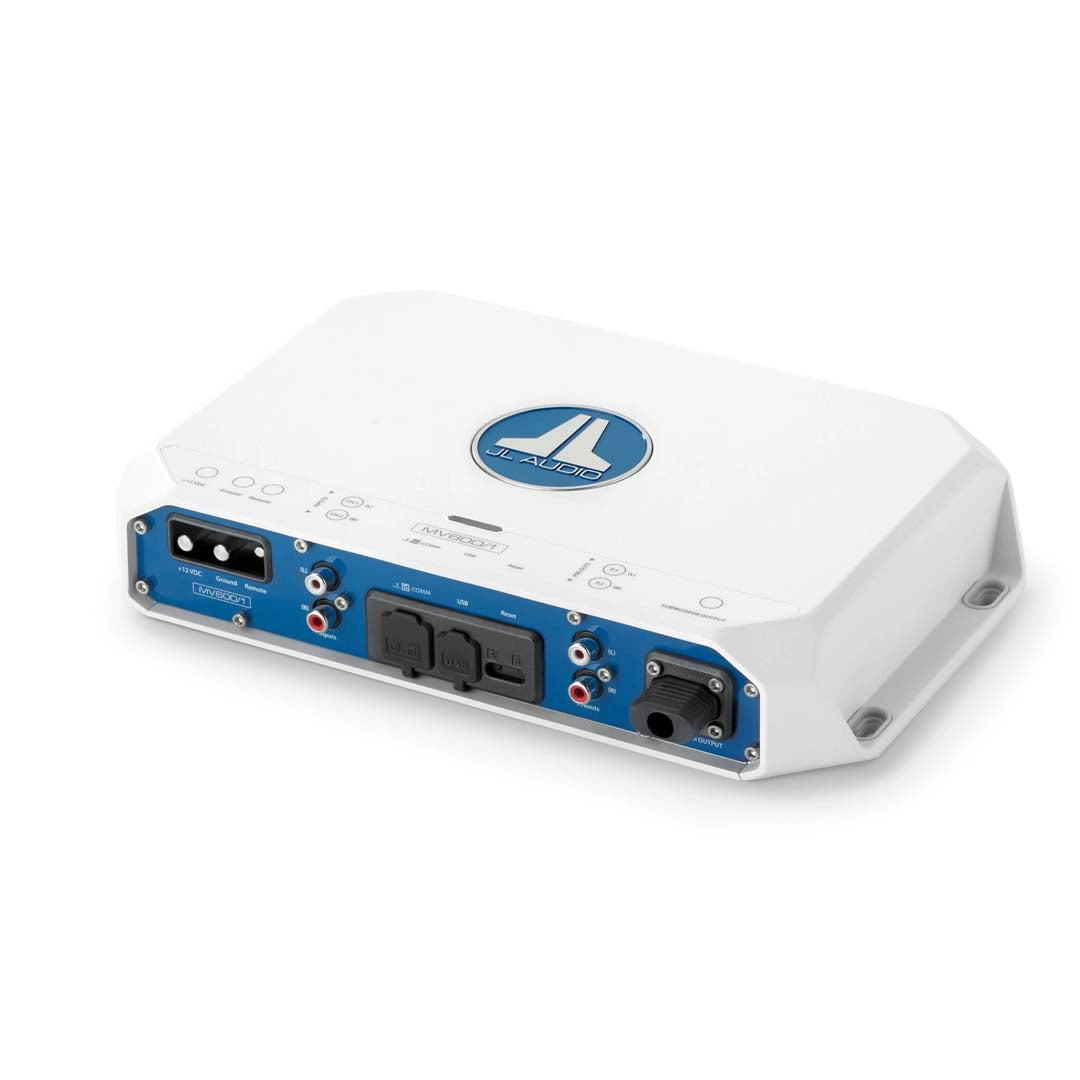

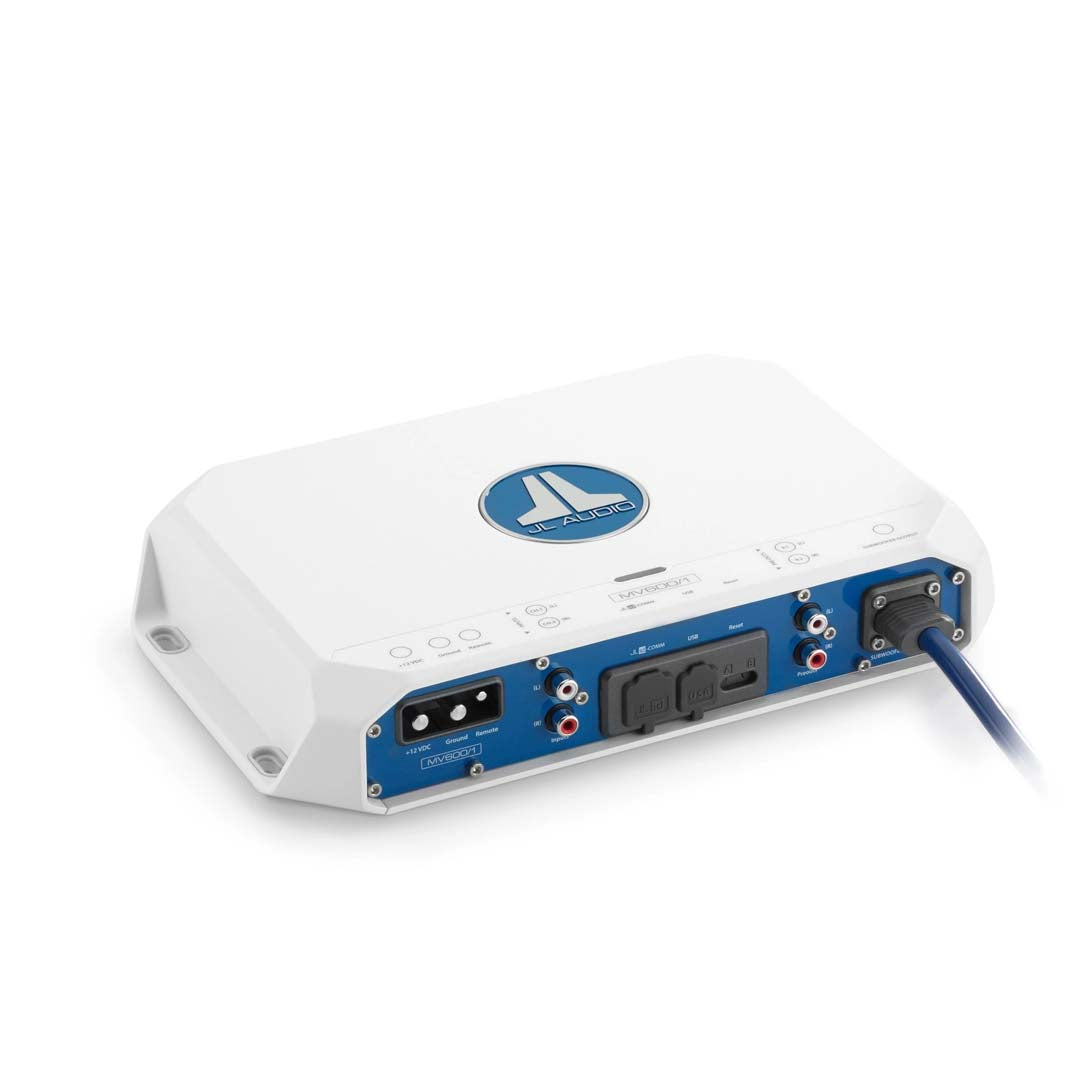

JL Audio MV600/1 MVi Series 600W Class D Monoblock Marine Subwoofer Amplifier - Perfect for Boats, Yachts & Marine Audio Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:23 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:20174252
Product Description
Designed to be paired with full-range MVi amplifiers, MV monoblock subwoofer amplifiers are engineered to deliver outstanding bass performance and fidelity, with exceptional efficiency.
Equipped with an exclusive, low-frequency variant of our NexD2™ switching amplifier technology, the MV600/1 monoblock subwoofer amplifier generates up to 400 watts into 4 ohms, or a powerful 600 watts into 2 ohms. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/1 is outfitted with corrosion-resistant hardware and connectors.
Instead of traditional control knobs and switches, all amplifier adjustments are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Subwoofer Output Harness, 6 ft A/B USB Cable
NexD2™ Switching Technology
JL Audio's NexD2™ amplifier technologies are a next-level approach to improving what is already an outstanding Class D design platform. Employing new components and more advanced circuit layouts, fidelity and efficiency have been significantly enhanced.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
JLid™
JLid™ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).
|
| Weather Resistance | IPX2 |
Number of Channels | 1 |
Class | D |
Peak Power Rating (Watts) | |
RMS Power Rating (Watts x Channels) - 4 Ohms | 400 x 1 |
RMS Power Rating (Watts x Channels) - 2 Ohms | 600 x 1 |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) | 2 |
| Minimum Impedance Bridged (Ohms) | 4 |
| THD at Rated RMS Power | 1% |
| Bulit-in Crossover - Low Pass | DSP |
| Built-in Crossover - High Pass | DSP |
| High Pass Crossover Frequency (Hz) | DSP |
| Low Pass Crossover Frequency (Hz) | DSP |
| Signal-to-Noise Ratio | 90dB |
| Bass Boost | DSP |
| Bass Remote Included | No |
| Fuse Rating | 50A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
