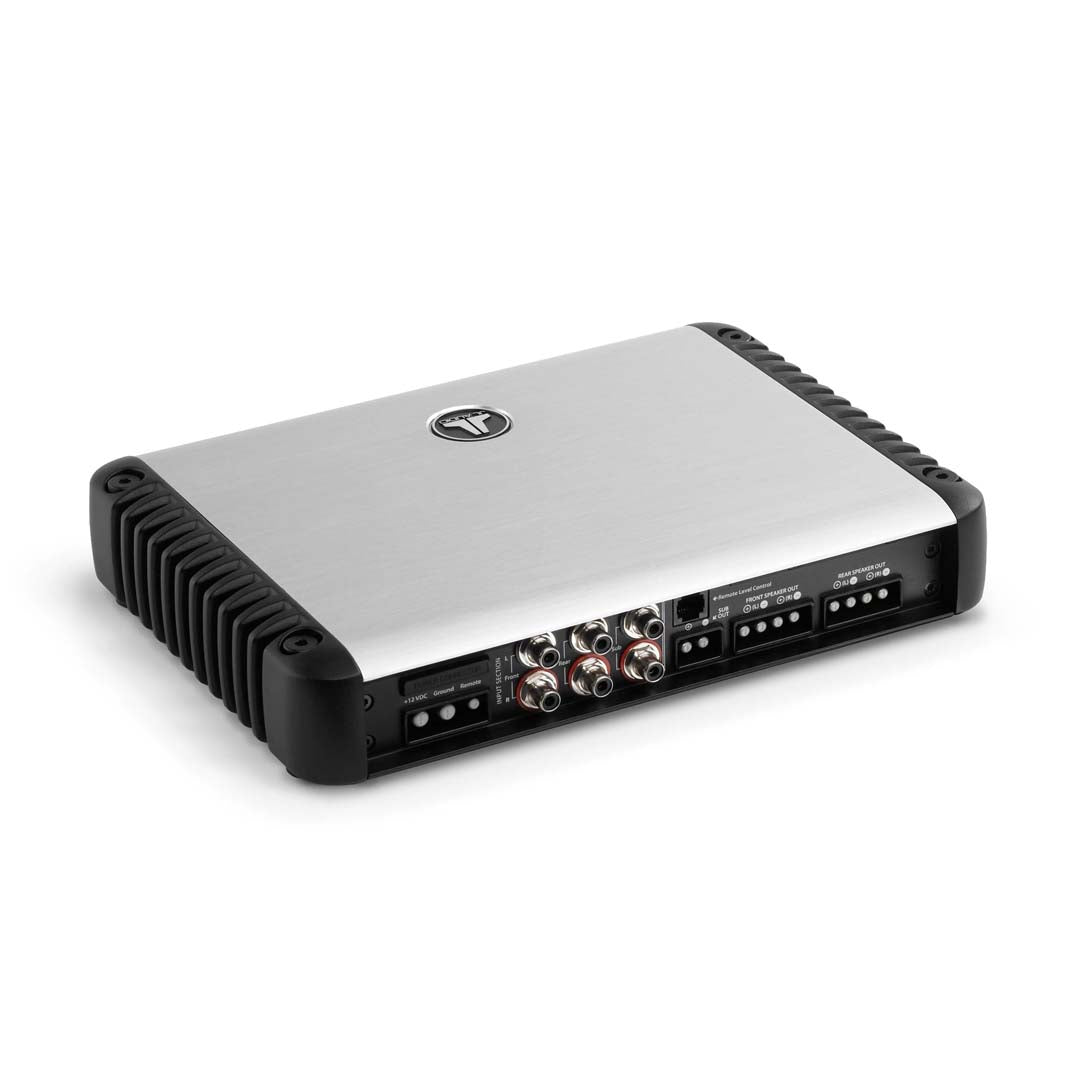

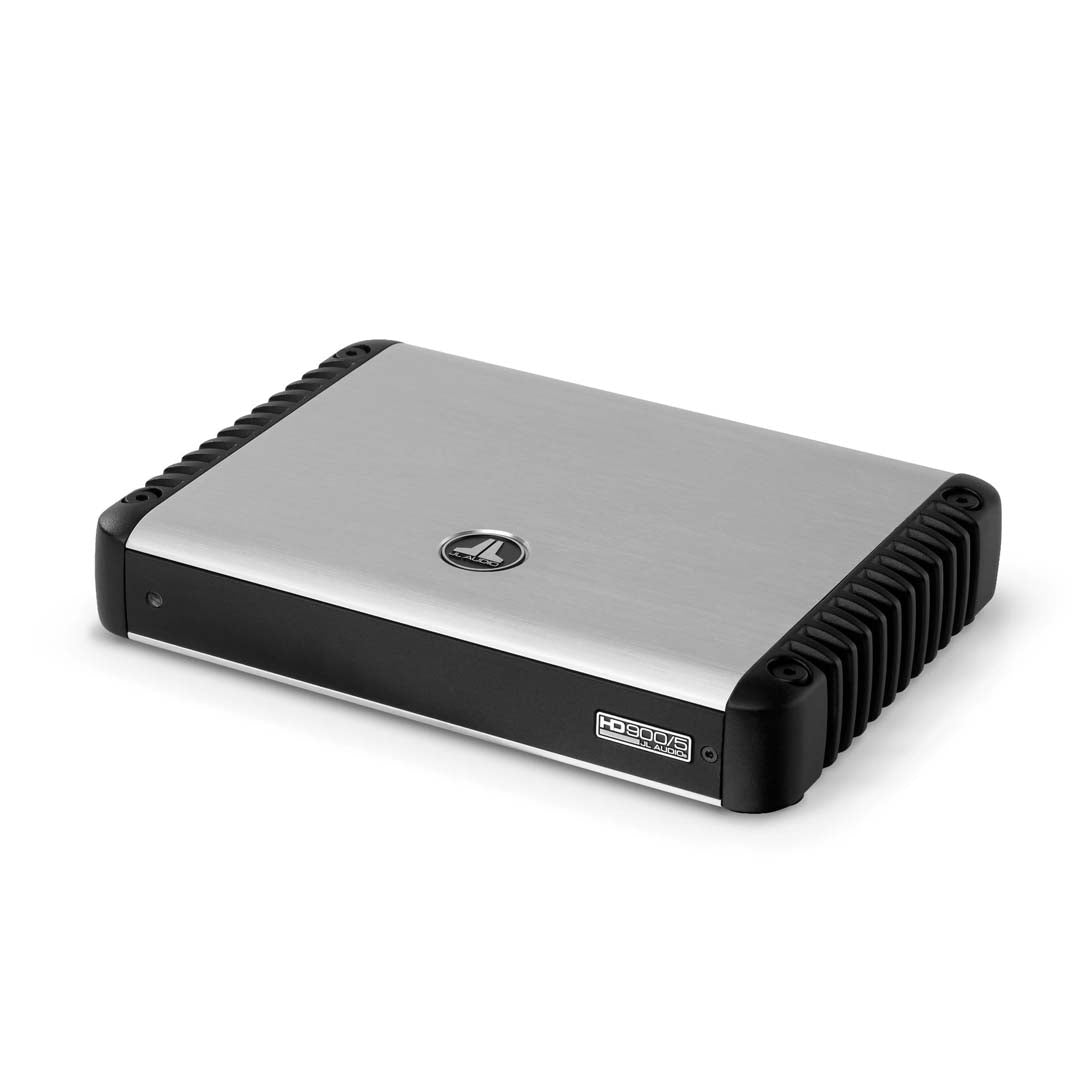

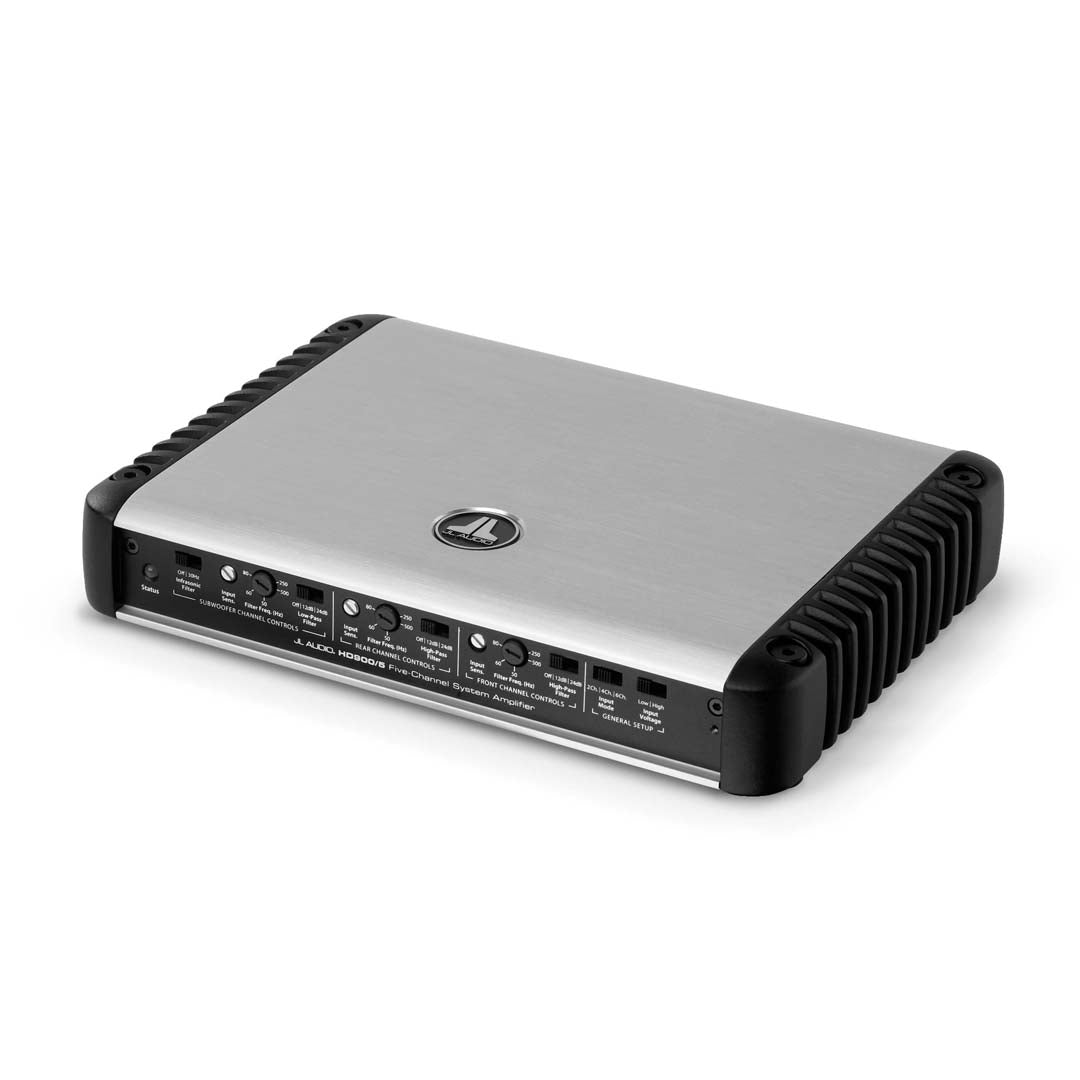

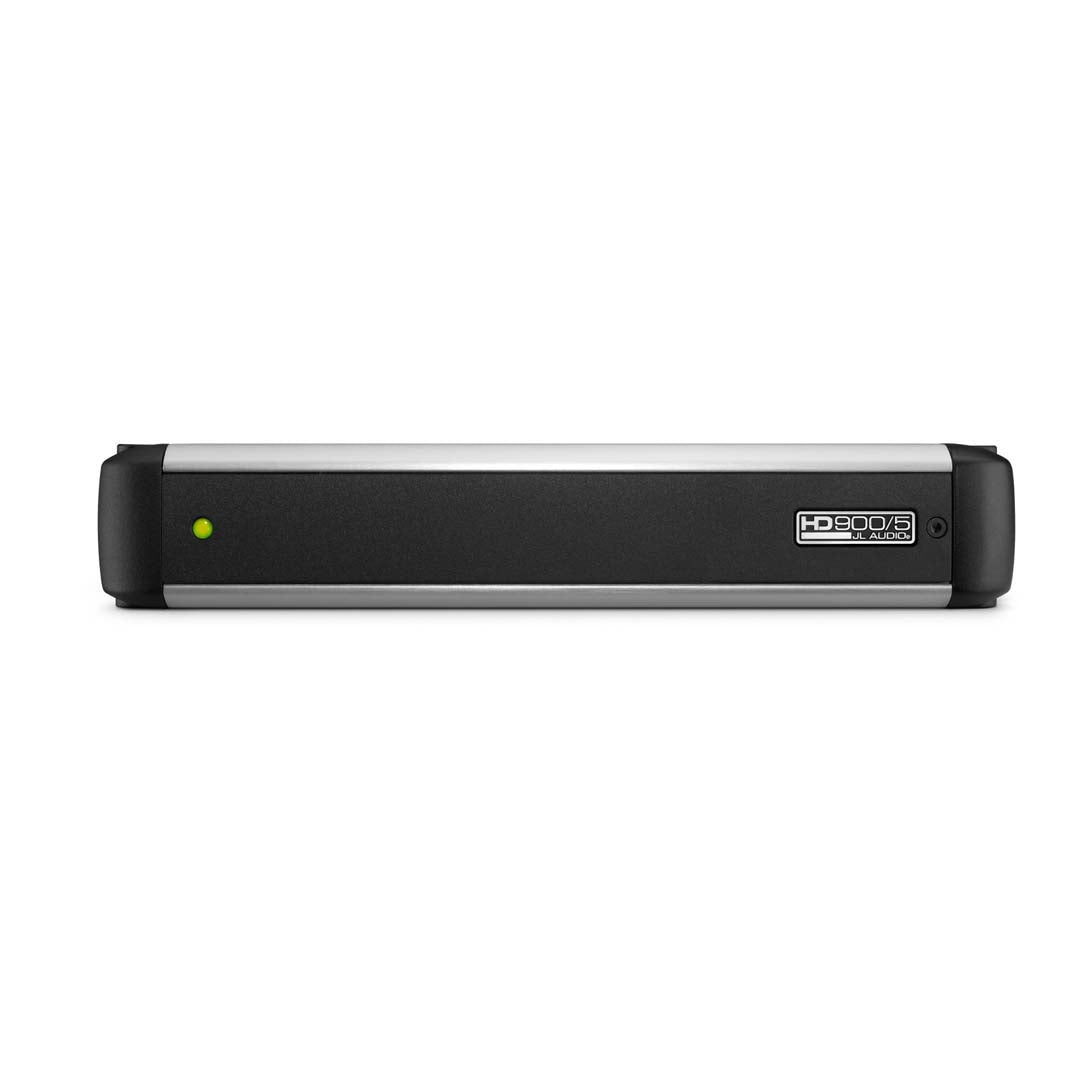

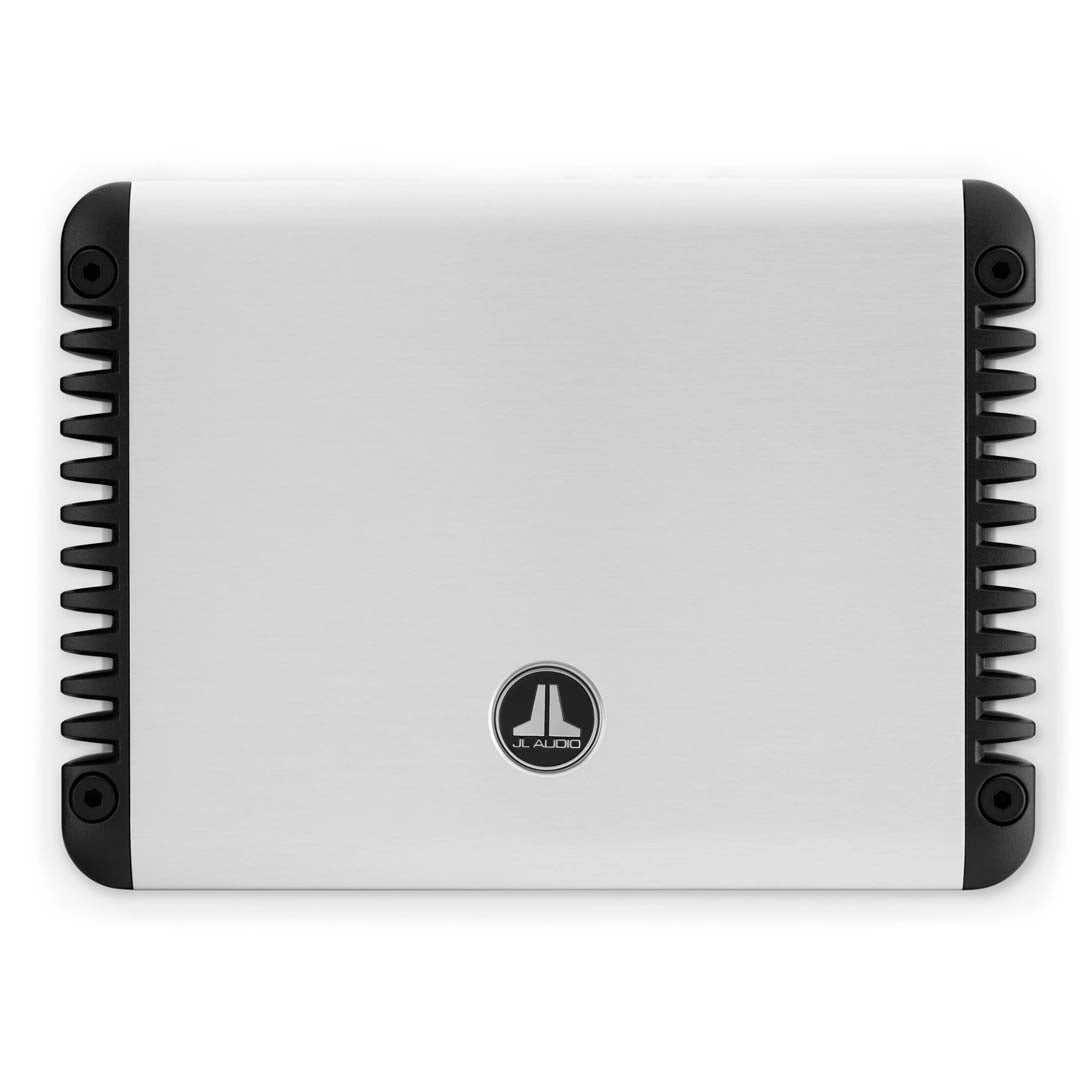

Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
High-Fidelity, full-range Class D is a reality.
The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
Vertical, cast alloy fins effectively dissipate heat, without resorting to noisy fan-cooling.
Two mounting options plus a space-saving stacking feature ease installation.

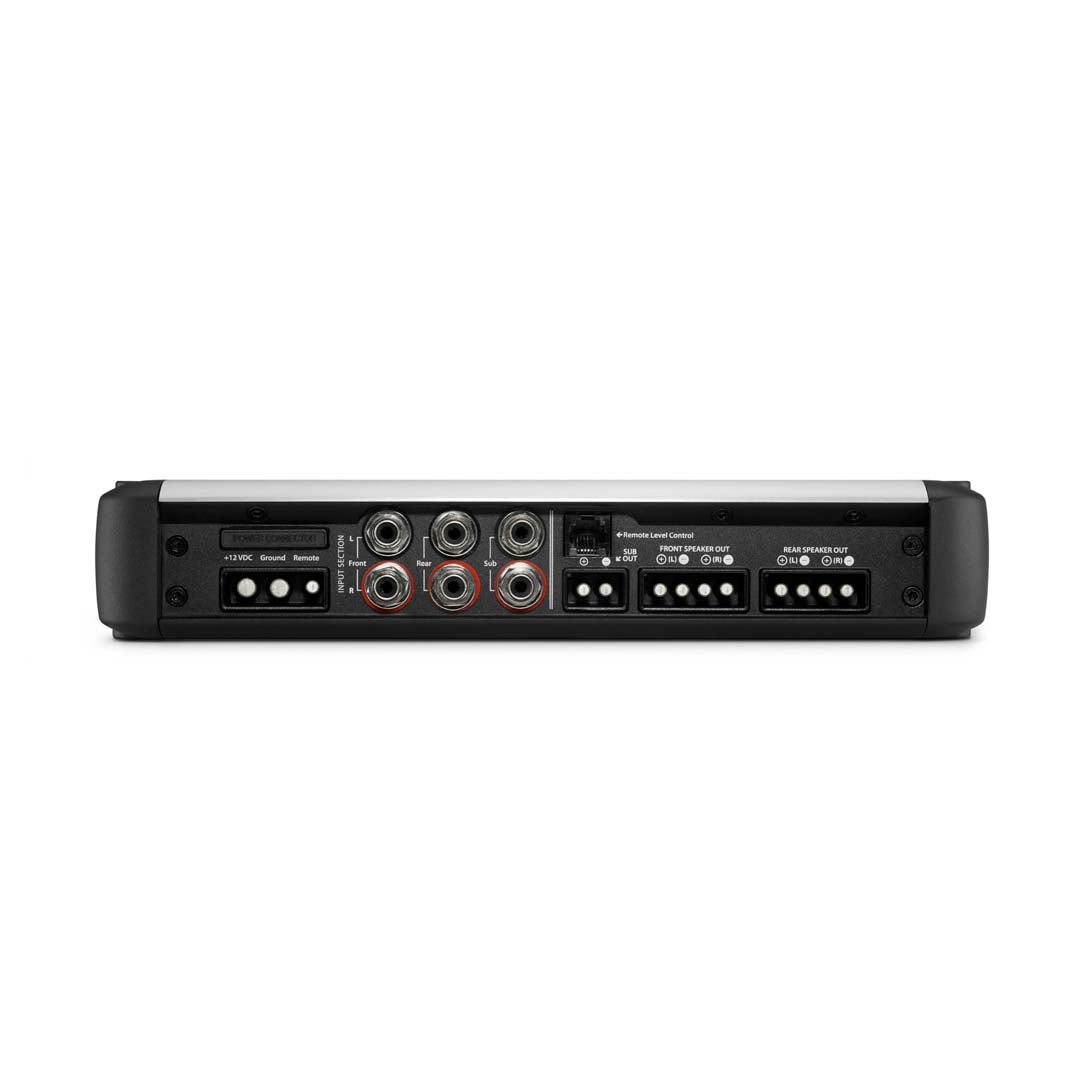

JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
Number of Channels | 5 |
Class | D |
Peak Power Rating (Watts) | |
RMS Power Rating (Watts x Channels) - 4 Ohms | 100 x 4 500 x 1 |
RMS Power Rating (Watts x Channels) - 2 Ohms | 75 x 4 500 x 1 |
RMS Power Rating (Watts x Channels) - 1.5 Ohm | 75 x 4 500 x 1 |
RMS Power Rating - Bridged 3-8 Ohms | 150 x 2 |
Minimum Impedance Unbridged (Ohms) | 1.5 |
Minimum Impedance Bridged (Ohms) | 3 |
THD at Rated RMS Power | 0.03% |
Bulit-in Crossover - Low Pass | Yes |
Built-in Crossover - High Pass | Yes |
High Pass Crossover Frequency (Hz) | 50-500hz |
Low Pass Crossover Frequency (Hz) | 50-500hz |
Signal-to-Noise Ratio | 108dB |
Bass Boost | No |
Bass Remote Included | No |
Fuse Rating | 60A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
