JL Audio C5 525x 5.25" Coaxial Car Speakers - 225W RMS, 2-Way Full Range Audio System for Cars, Trucks & SUVs - Perfect for Upgrading Factory Stereo & Enhancing Road Trip Music Experience
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:24531954
Product Description
The smoothness and transparency of a high-end silk dome tweeter combines with top-flight woofer performance to create a coaxial loudspeaker system with exceptional refinement and dynamic capability.

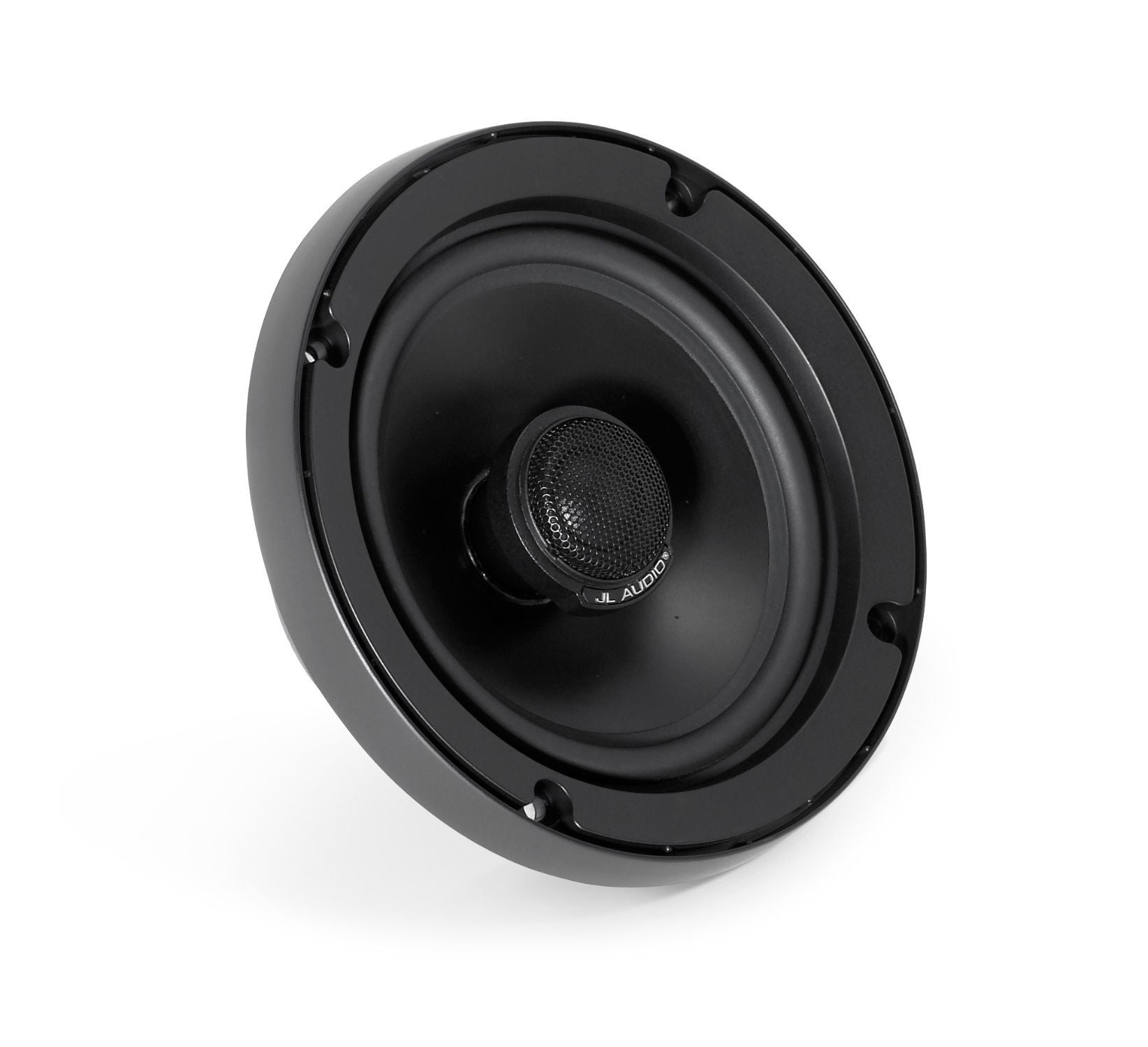

The C5-525x system features 5.25-inch (130 mm) woofers with die-cast alloy baskets and Kurt Müller cones and suspensions. The woofer benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C5 tweeter minimizes tweeter protrusion, allowing C5 coaxials to easily fit behind most factory speaker grilles.

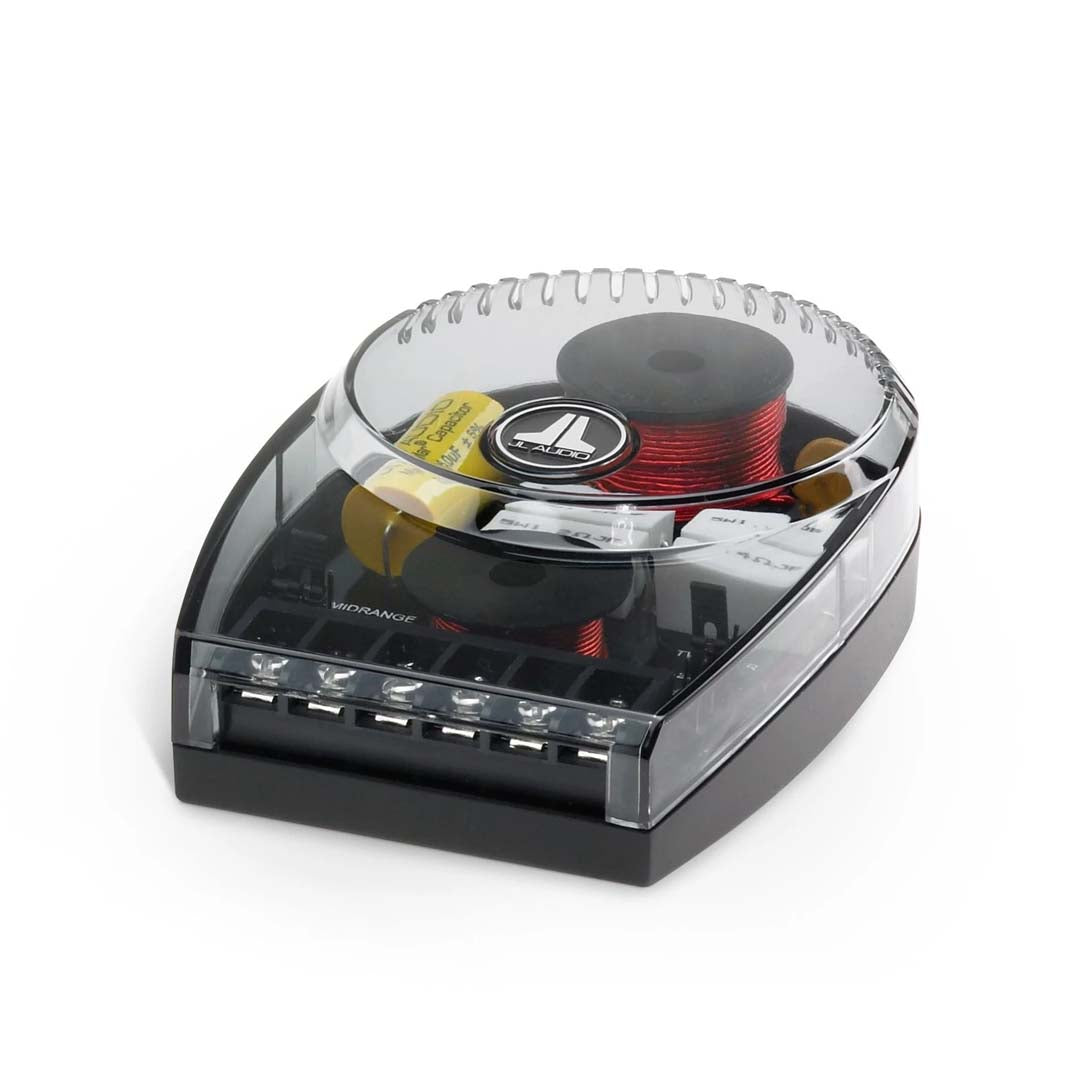

C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Speaker grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Smooth and balanced
Made in Germany, Sold as a pair.
Dr. Kurt Muller & Co.
The best sound requires cones and suspensions made to the highest standards in the world.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Silk Dome Tweeter
Light, fast moving silk dome material promotes high-frequency accuracy.
|
Speaker Size | 5.25" |
Design | 2-Way |
Tweeter Design | 3/4" Soft Dome |
Impedance (Ohms) | 4 |
Tweeter Composition | Silk |
| Woofer Composition | Mineral-filled Polypropylene |
| Woofer Surround | Butyl rubber |
| Sensitivity (dB) | 88.5dB |
| Frequency Response (Hz) | 53-25k Hz |
| RMS Power Rating (Watts) | 75 |
| Peak Power Rating (Watts) | 225 |
| Top-mount Depth (Inches) | 2 7/16 |
| Bottom-mount Depth (inches) | |
| Cutout Diameter (inches) | 4 1/2 |
| Grilles Included | Yes |
| Warranty | 1-Year |
