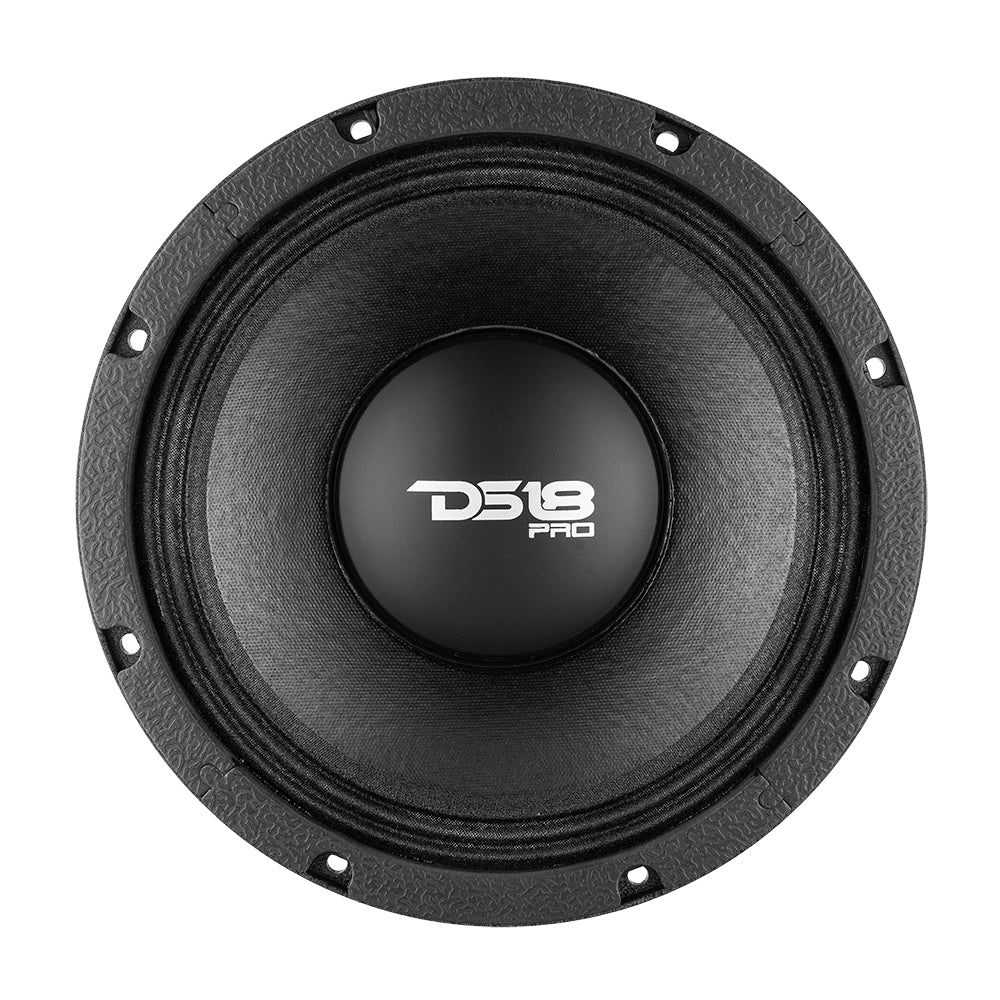

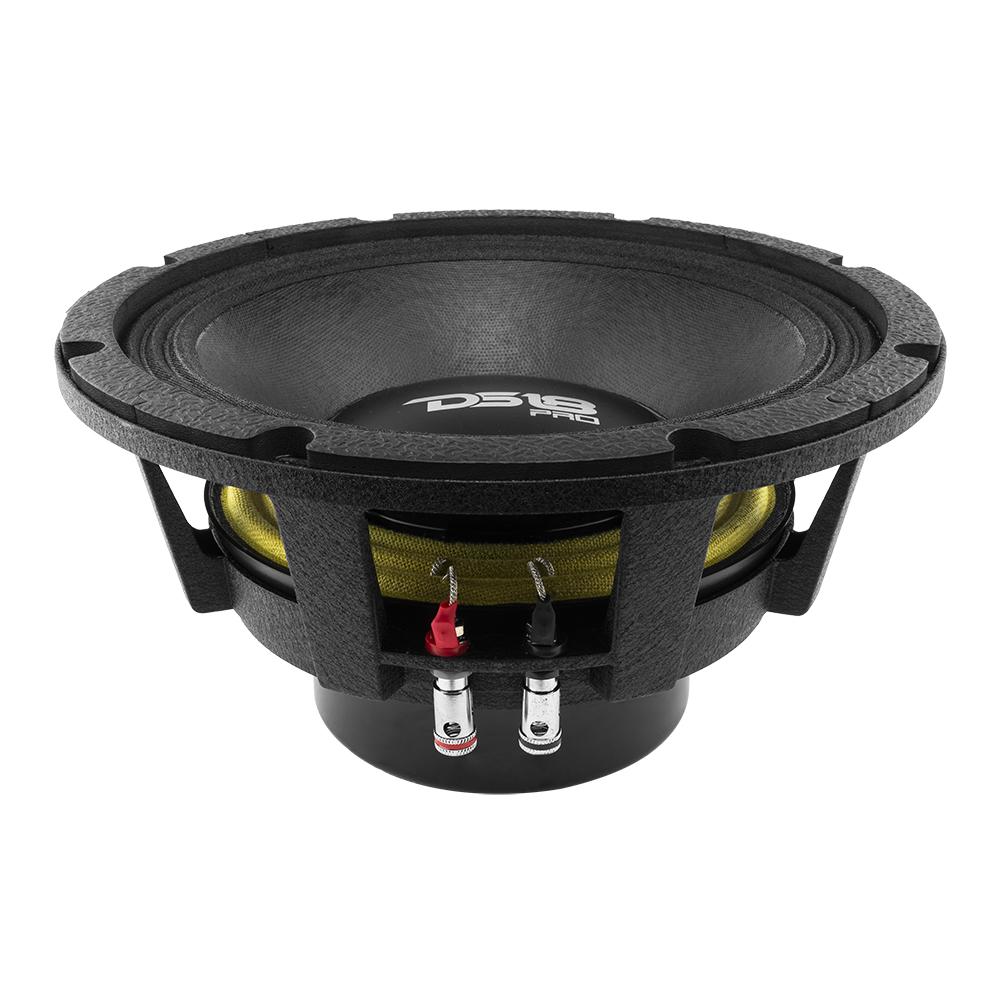

Unleash amazing and crazy mid-bass with our new specialty mid-bass Neodymium speaker, the PRO-XLNEO10MB! This mid-bass speaker packs a very powerful punch and is backed with the awesome force of the Neodymium motor structure, which is much more efficient and has better power transition than traditional ferrite motors used in most speakers. These Neo speakers handle 1000w RMS and 2000 Peak while also retaining a 96.5db sensitivity which is rare and really drives these XL NEO speakers to the core. These are guaranteed to bring out all the mid bass you are missing from your pro audio system with great authority and precision.
Highlights
SPECIFICATIONS | |
Nominal Diameter | 10” / 254mm |
Nominal Impedance | 8 Ohms |
RMS Power Handling | 1000W |
MAX Power Handling | 2000W |
Sensitivity (1w/1m) | 96.5 dB |
Frequency Response | 50Hz - 7KHz |
Recommended HI Pass Crossover | 100Hz |
Pair or Single | Single |
MOTOR | |
Voice Coil Diameter | 4” / 99.8mm |
VC Former Material | Glass Fiber |
Winding Material | CCAW |
Cone Material | Paper |
Dustcap Material | Paper |
Surround Material | Cloth |
Basket Material | Aluminum |
Basket Color | Sandblasted Black |
Magnet Material | Neodymium |
Magnet Weight | 18.5 Oz |
Displacement Volume | 1.83L / 0.064ft3 |
THIELE & SMALL PARAMETERS | |
Equivalent Volume | 20.53L / 0.72ft3 |
Excursion (one way) | 13.8 mm |
Free Air Resonance | 64Hz |
Mechanical Factor | 3.03 |
Electrical Factor | 0.255 |
Total Factor | 0.235 |
Mechanical Mass | 78.573g |
Mechanical Compliance | 0.125mm/N |
BL Factor | 20.072 |
Voice Coil Inductance | 32.64mH |
Cone Area | 339.795CM² |
DC Resistance | 5.2 Ohm |
Mechanical Mass w/o Air | 65.971g |

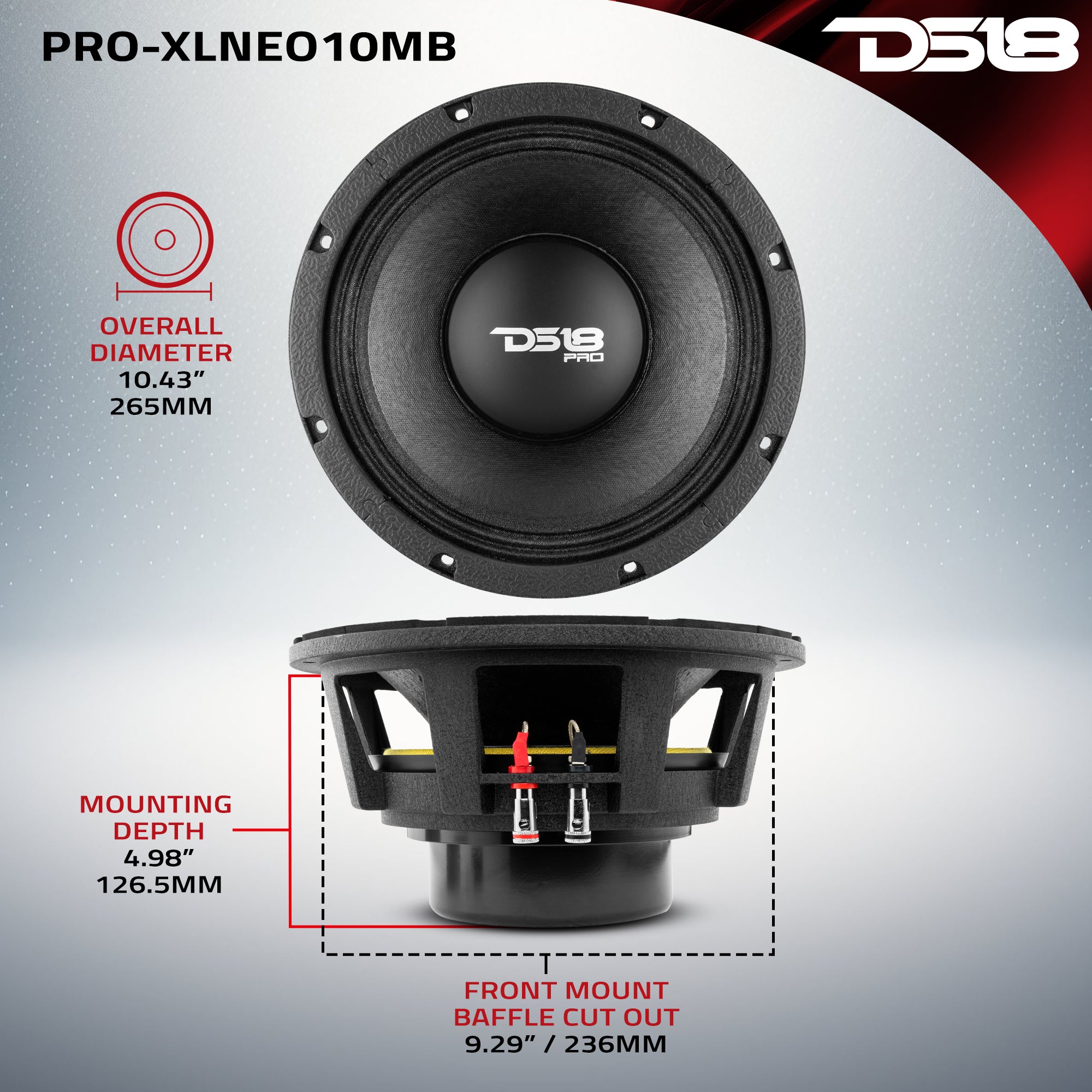

MEASUREMENTS | |
Overall Diameter | 10.43”/265mm |
Overall Depth | 5.45” / 138.5mm |
Front Mount Baffle Cutout | 9.29”/236mm |
Mounting Depth | 4.98”/126.5mm |
Motor Diameter | 5.86”/149mm |
