JL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & Watercrafts
JL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & WatercraftsJL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & Watercrafts

JL Audio M500/3 M Series Class D Marine 3 Channel Amplifier - High Power Boat & Marine Audio System for Boats, Yachts & Watercrafts

$357.49 $649.99 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:18 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:47102685

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

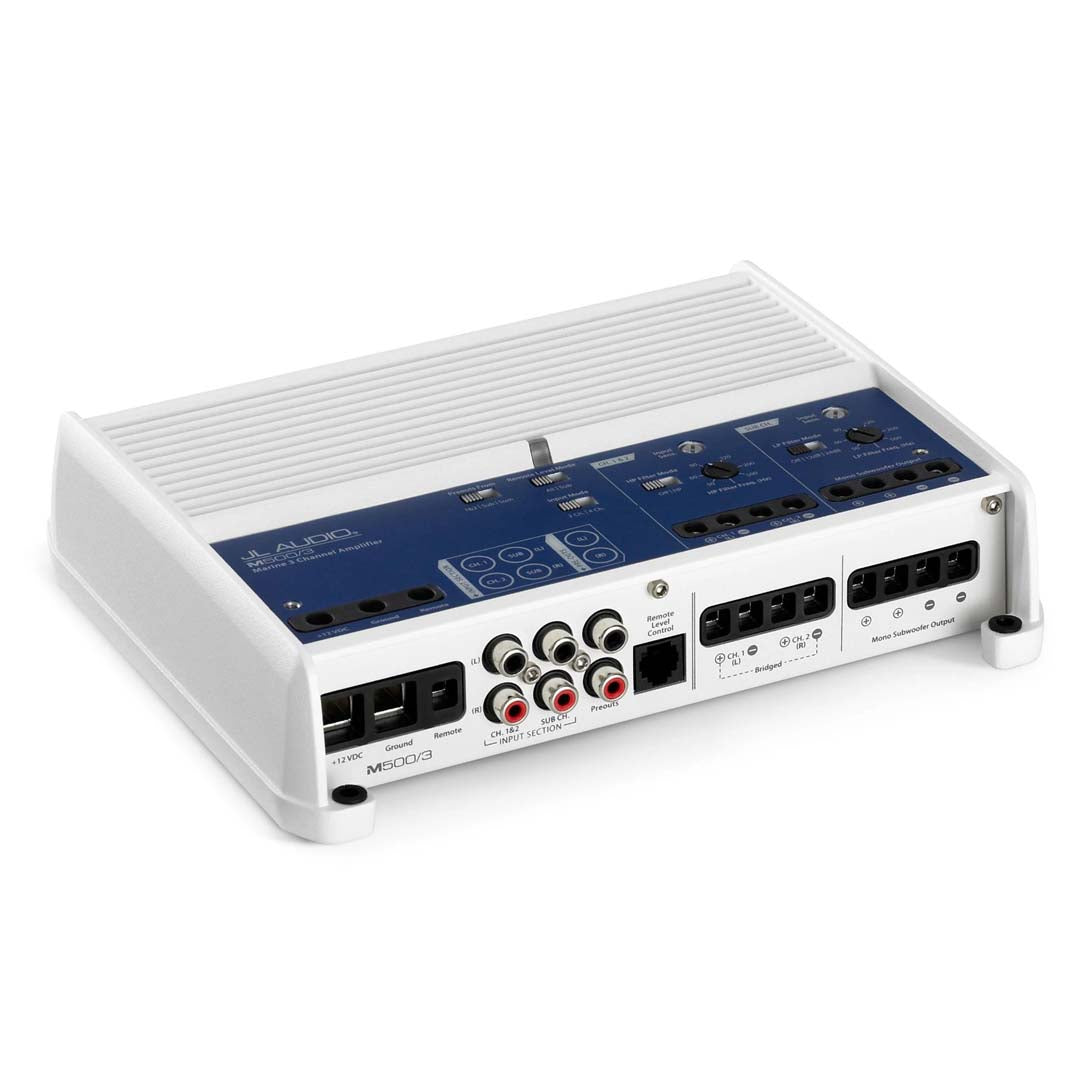

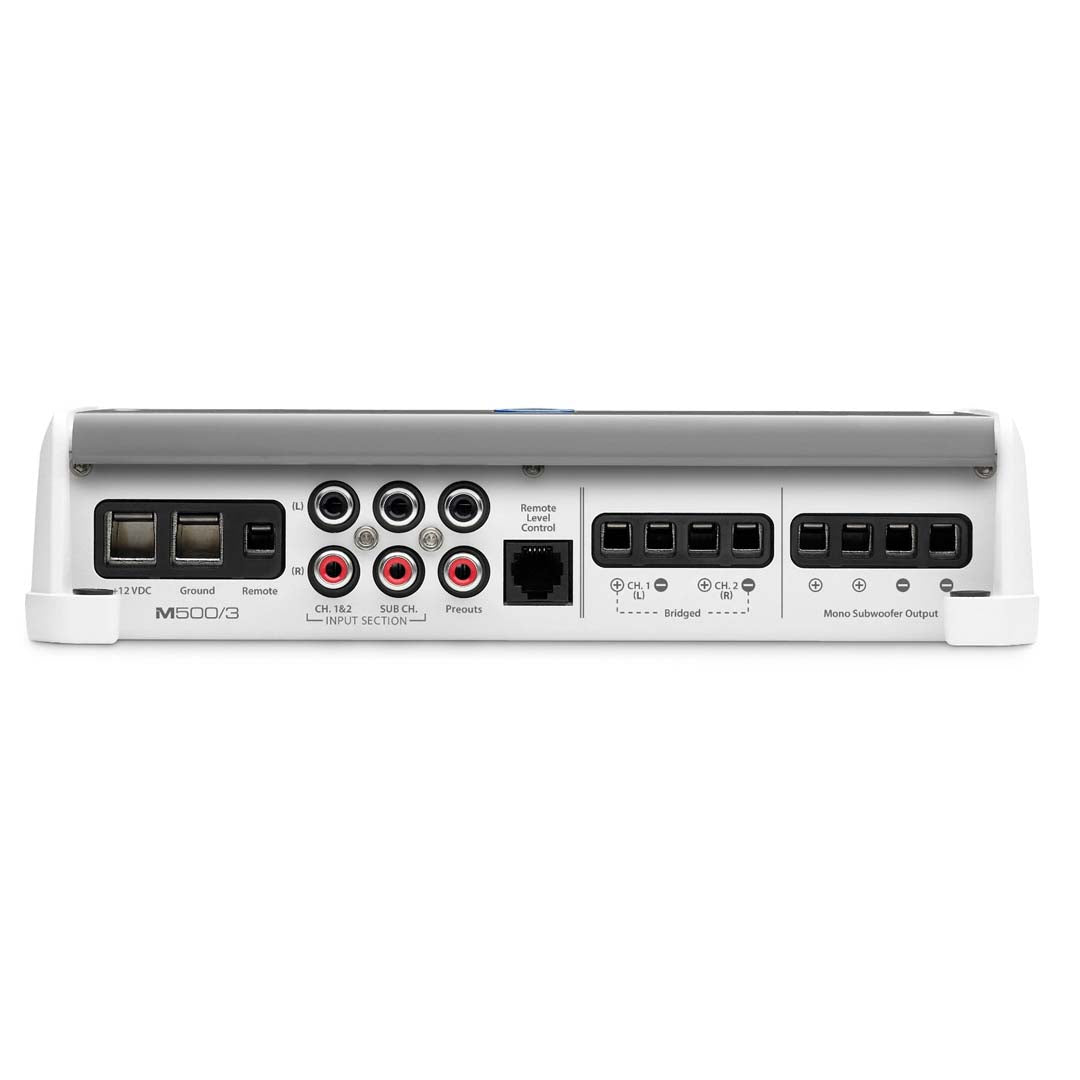

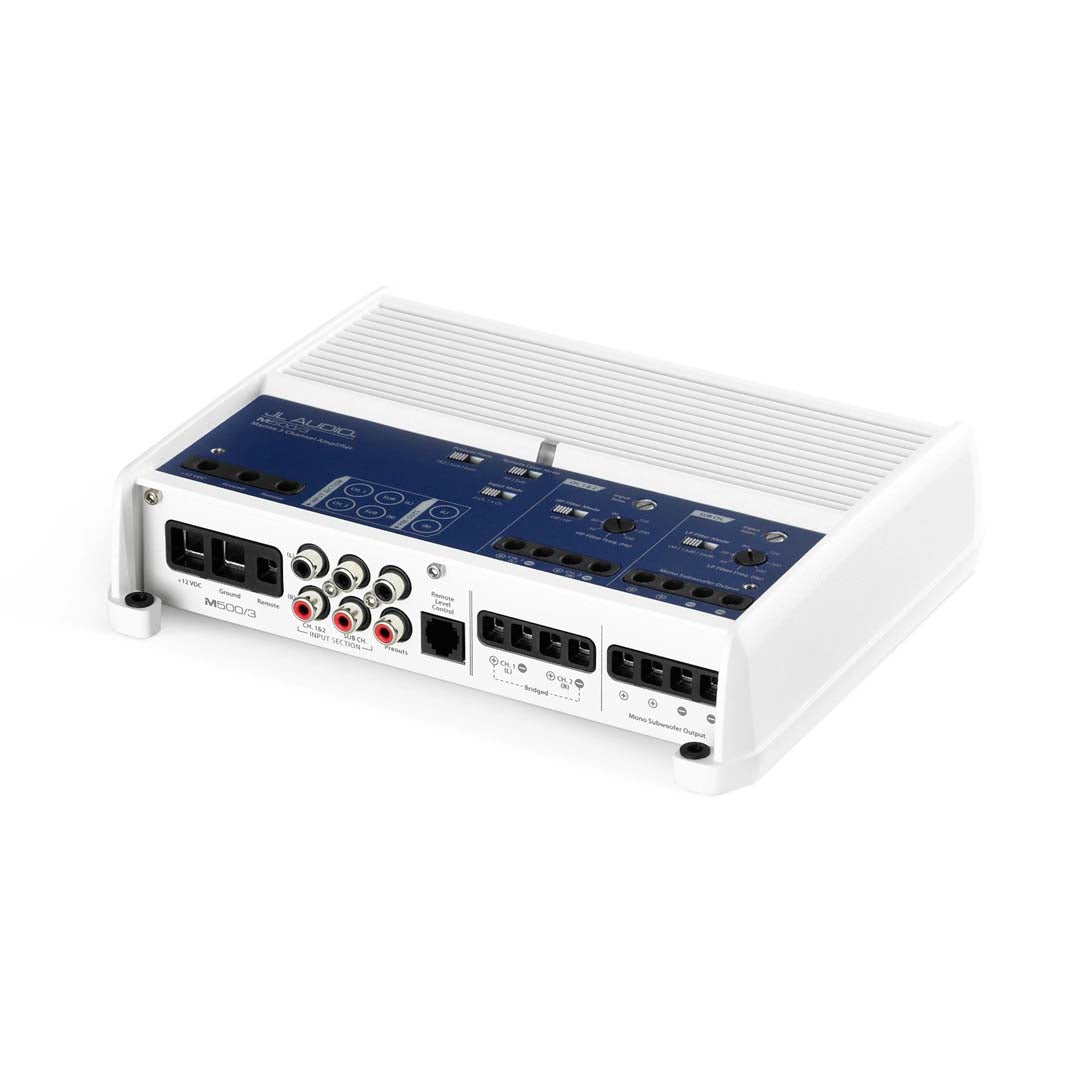

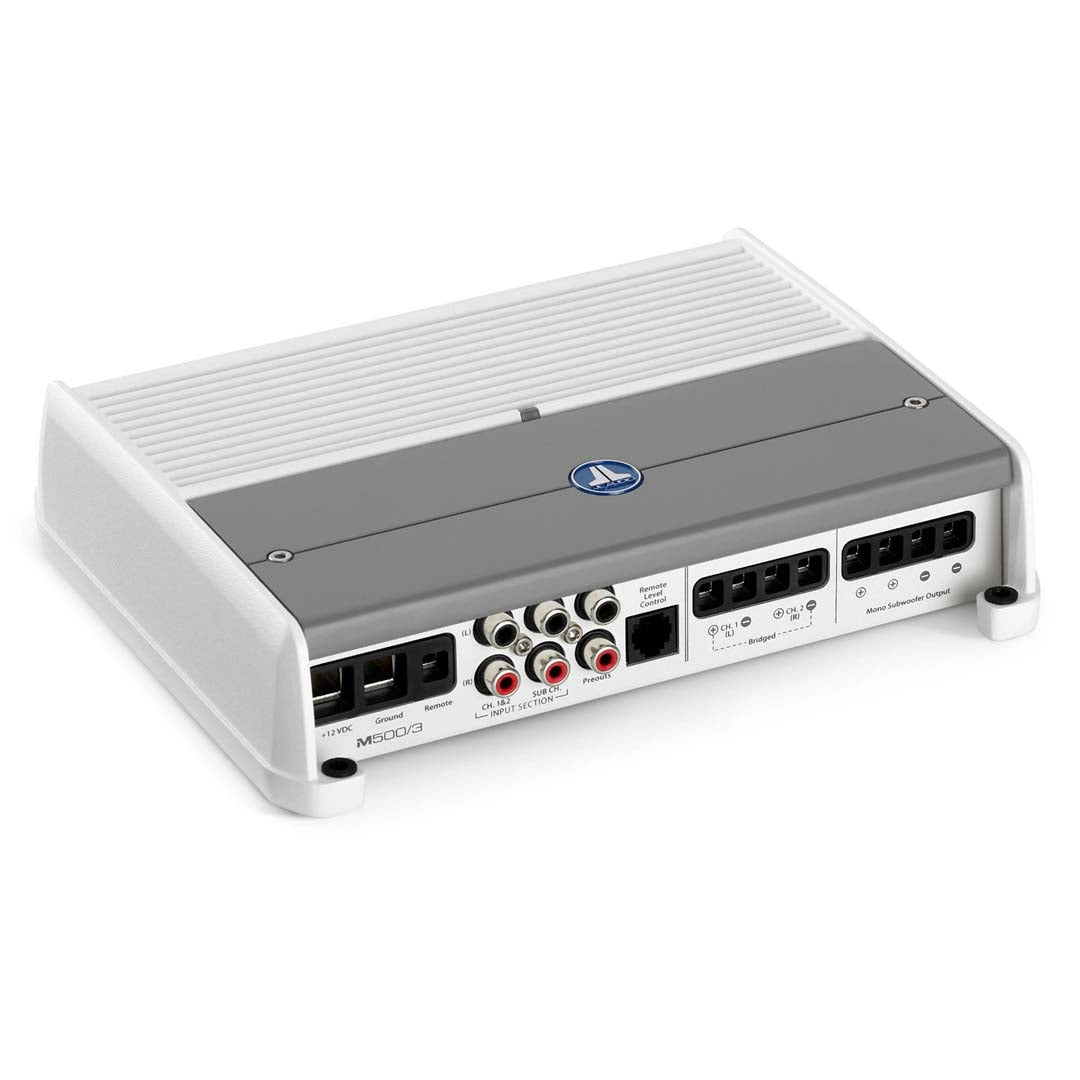

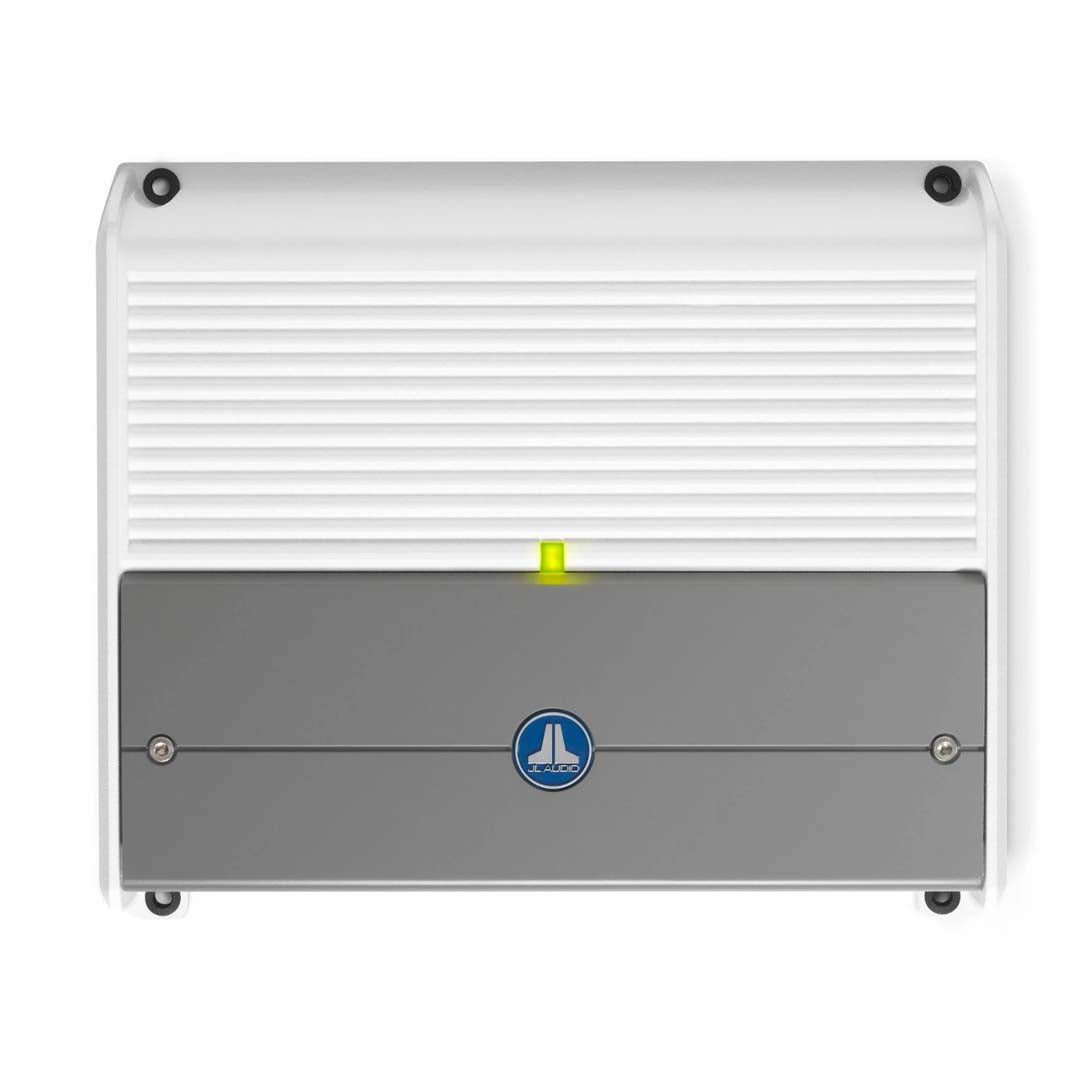

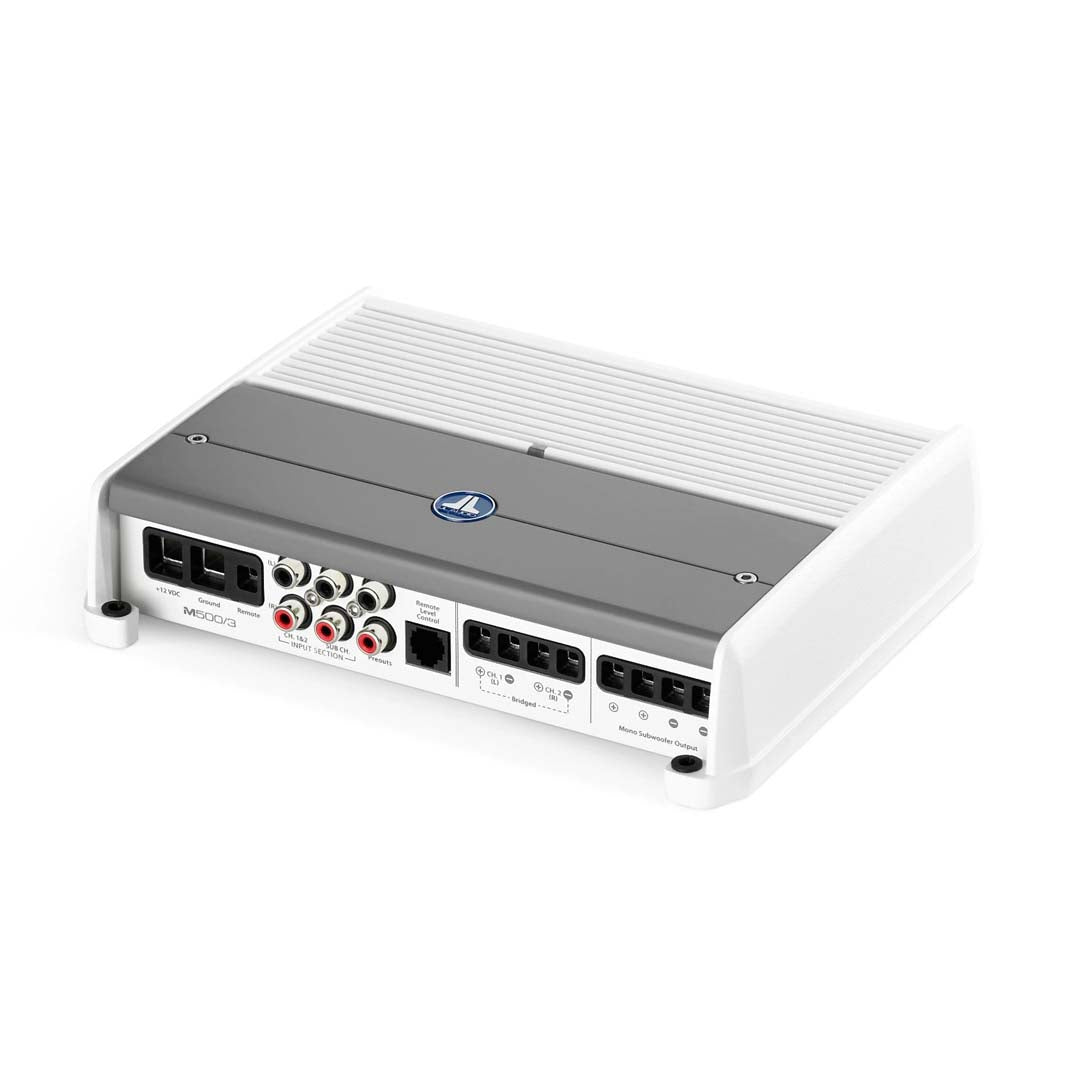

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the M500/3, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

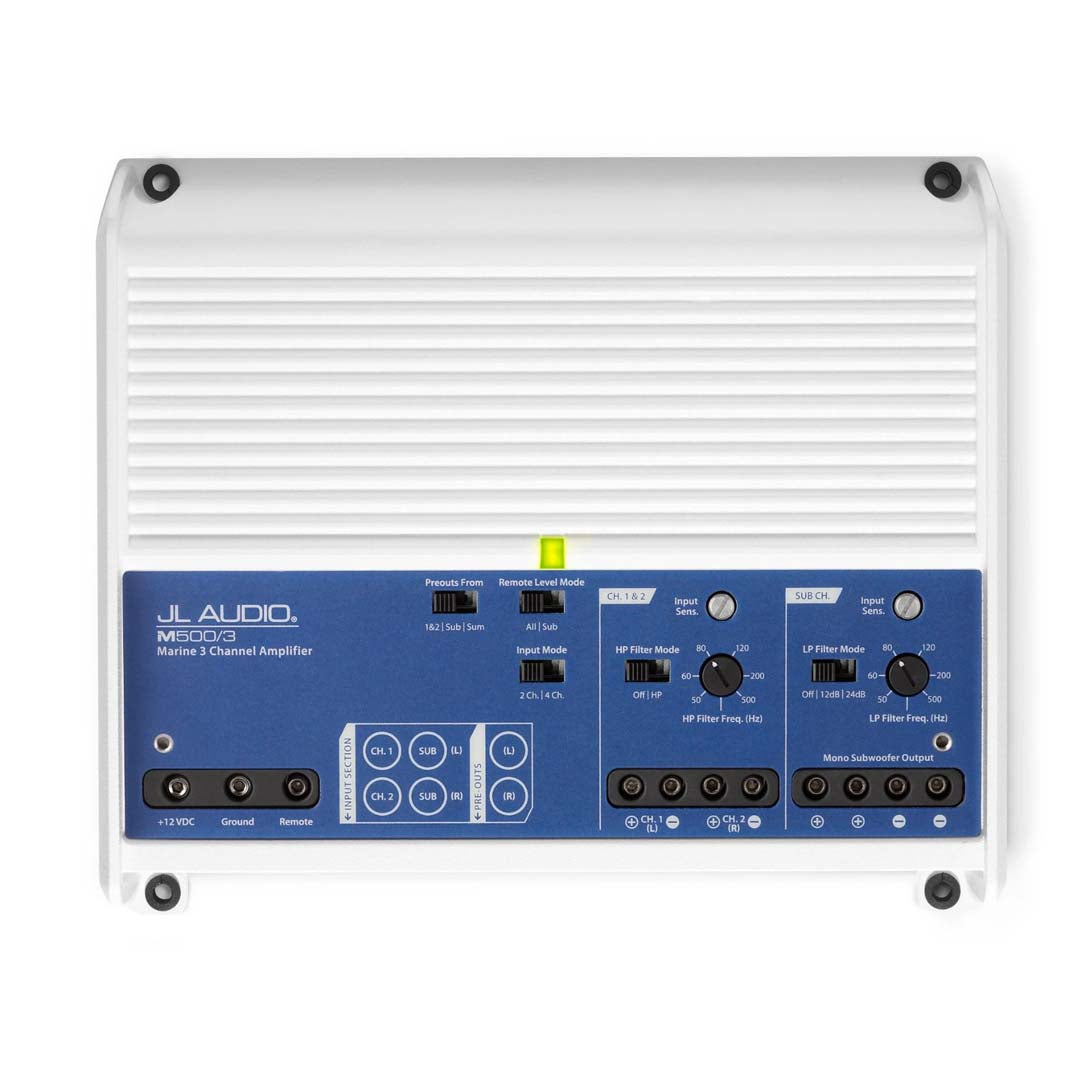

The M500/3 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Advanced Rollback Protection

JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.


NexD™ Switching Technology

NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.

|



Weather ResistanceYes

Number of Channels

3

Class

D

Peak Power Rating (Watts)


RMS Power Rating (Watts x Channels) - 4 Ohms



75 x 2

180 x 1

RMS Power Rating (Watts x Channels) - 2 Ohms



100 x 2

300 x 1

RMS Power Rating - Bridged200 x 1
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

4

THD at Rated RMS Power

1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass

Yes

High Pass Crossover Frequency (Hz)

50-500Hz

Low Pass Crossover Frequency (Hz)
50-500Hz
Signal-to-Noise Ratio

104dB

Bass Boost
No
Bass Remote Included

No

Fuse Rating40A
CEA-2006 CompliantYes
Maximum Power Wire Gauge Size4 Gauge
Warranty1 Year
