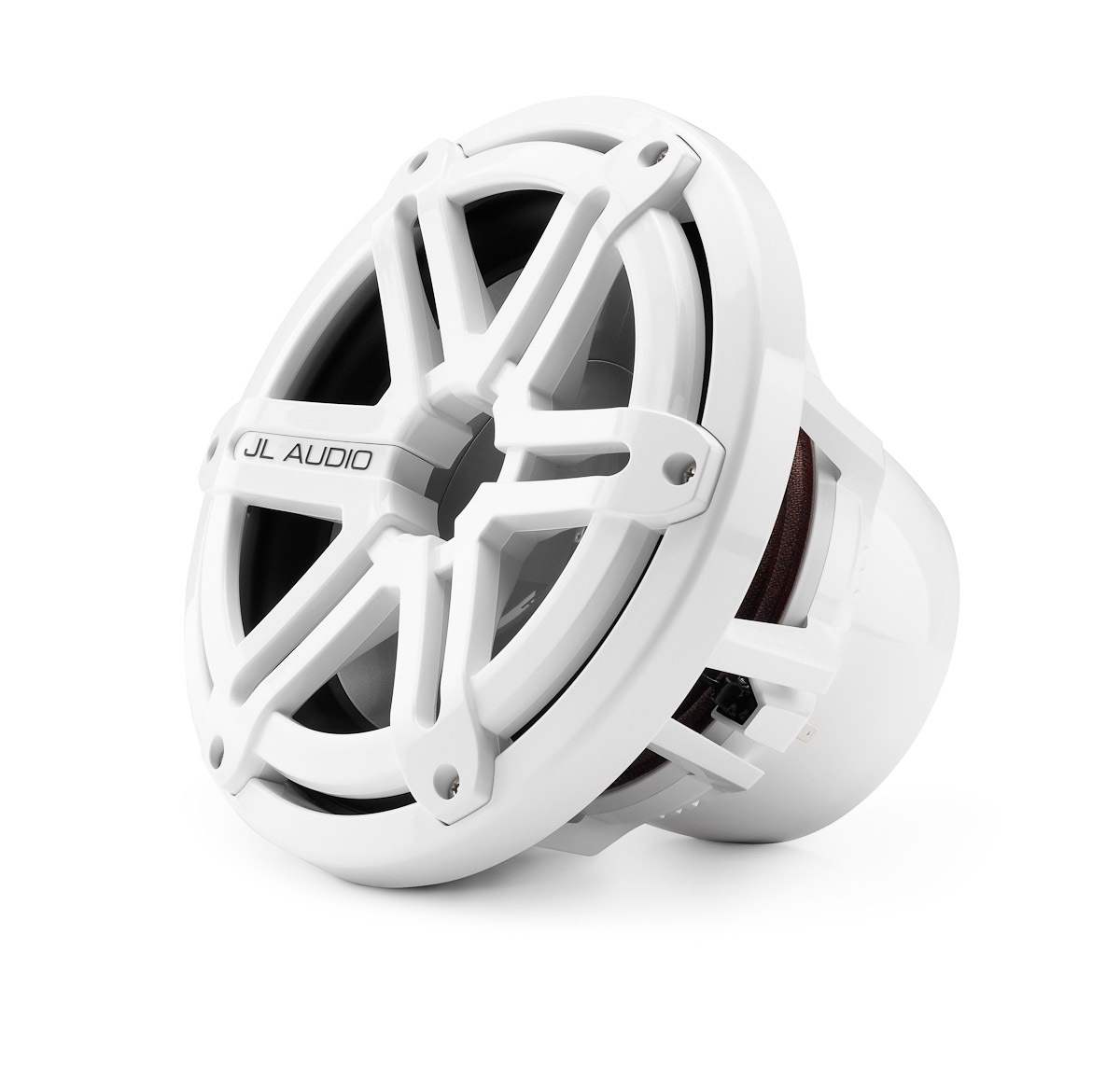

JL Audio M10IB5-SG-WH M Series Marine 10" 4 Ohm Subwoofer - Infinite Baffle Design, White Sport Grille, 250W RMS Power - Perfect for Boats, Yachts & Marine Audio Systems

$175.99 $319.99 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:26 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:52019675

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

General Features:

  • JL Audio 10" M-Series Infinite Baffle Marine Subwoofer
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13 mm¬†
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Minimum Enclosure Volume: 2 cu. ft. / 56.6 l (or larger)¬†
  • Infinite Baffle Use: Yes¬†
  • Color:¬†White
  • Matching Amplifiers:
    • JL Audio M200/2¬†- Class D Marine 2-Channel Amplifier
    • JL Audio M600/6¬†- Class D Marine 6-Channel Amplifier
  • Authorized Internet Dealer
  • 1-Year Manufacturer's Warranty
|
Weather resistanceYes
LED Illumination:No

Size

10-inch

Voice Coil

Single

Impedance

4 ohms

RMS Power Rating (Watts)

250

Peak Power Rating (Watts)

500
Cone Material

Injection-Molded Mica-Filled Polypropylene

Surround Material

Synthetic Rubber

Free Air

Yes

Sensitivity

86.7dB

Frequency Response


Top Mount Depth (Inches)

5 7/8"

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

8.875"

Vas (liters)


Fs (Hz)


Xmax (millimeters)

13mm

Warranty
1 Year
