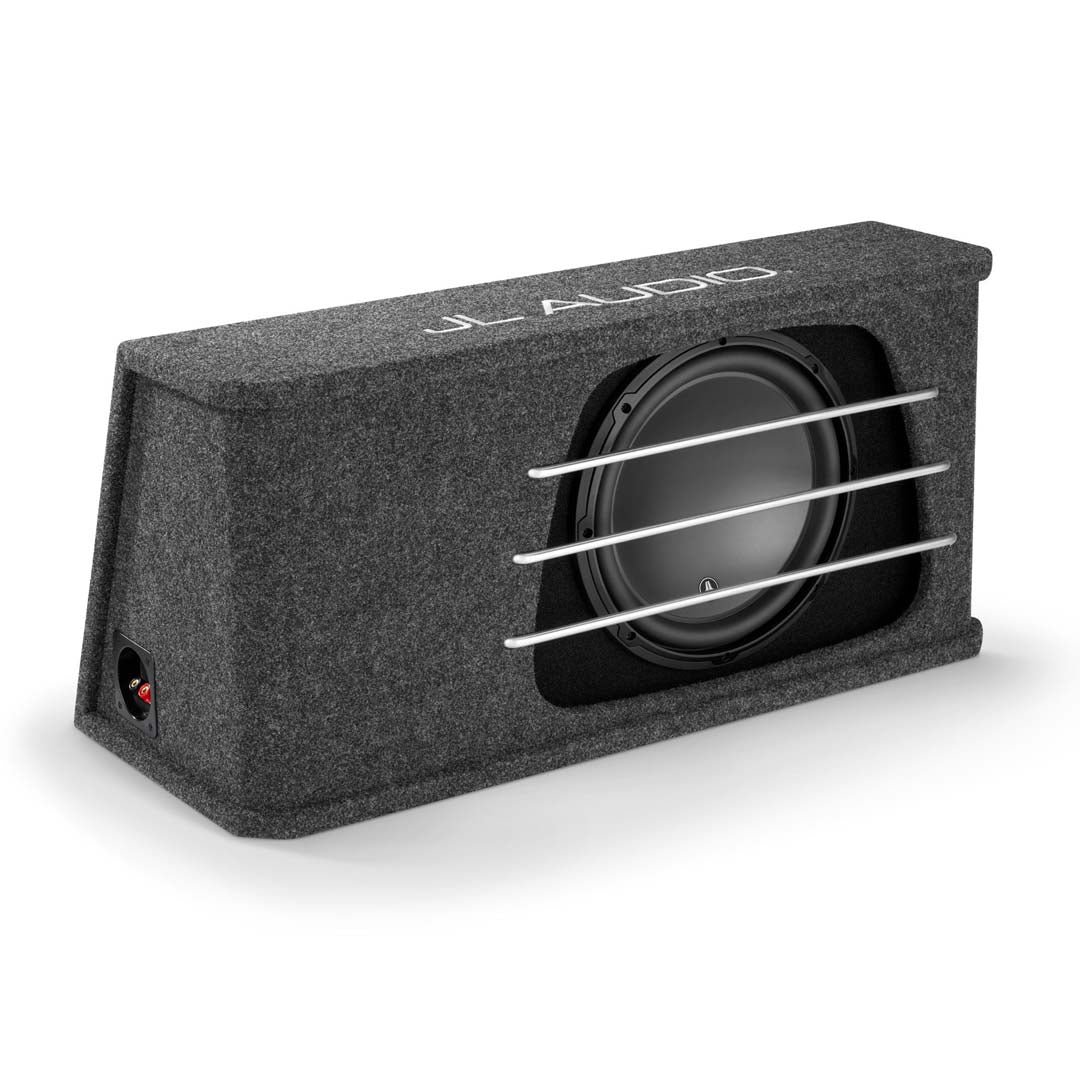

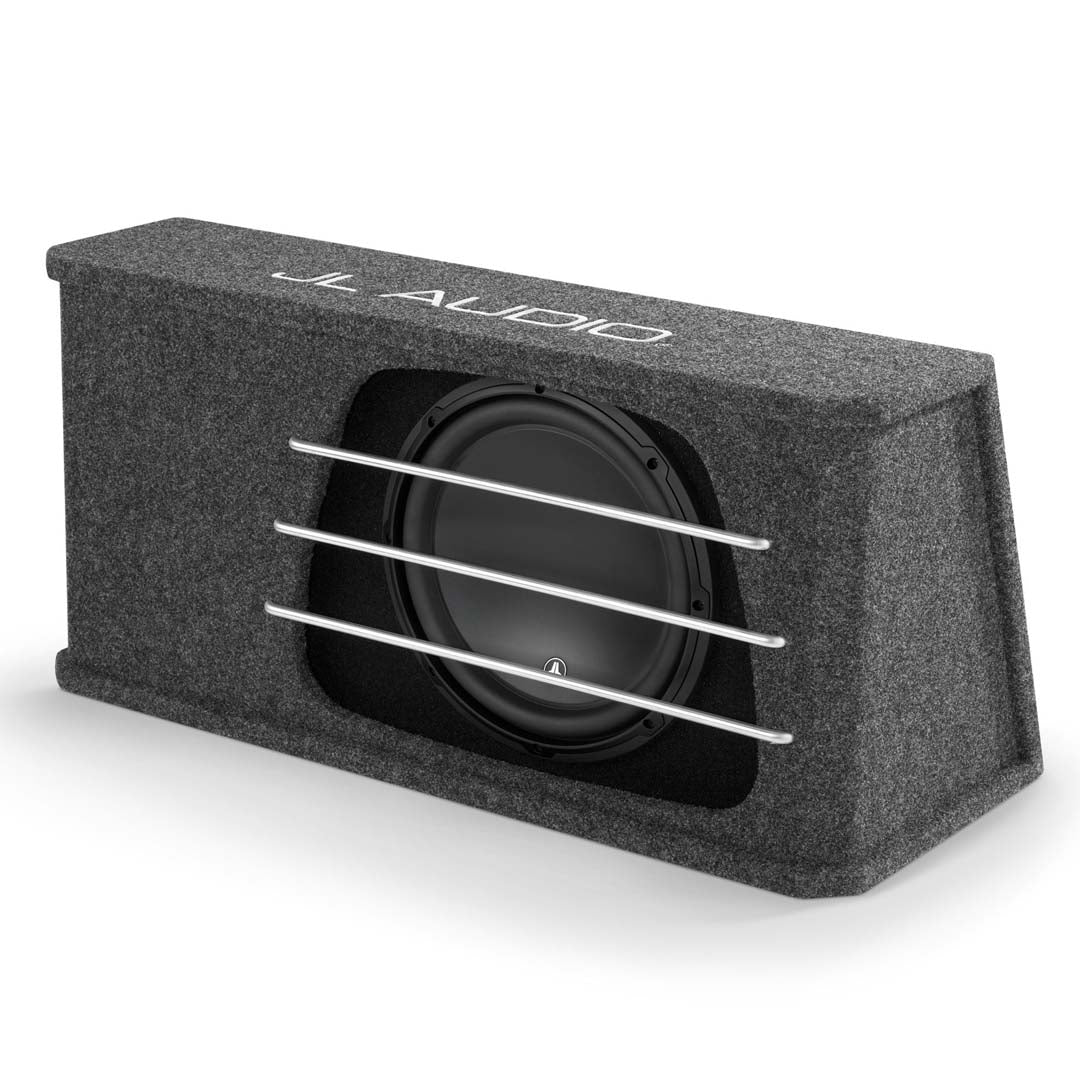

JL Audio HO112RG-W3v3 12" 2 Ohm High Output Ported Subwoofer - 500W RMS Power, W3 Series Loaded Enclosure for Car Audio & Home Theater Bass Enhancement
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:66011226
Product Description
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500 W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.High-Output (H.O.) Enclosure Design (U.S. Patent #6,625,292)
Insanely powerful H.O. (High Output) systems deliver very high SPL while retaining excellent sound quality.
V-Groove MDF Construction
This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Customizable Trim Ring
This removable ring can be painted to match the installation theme and directly receives JL Audio grille mesh inserts (sold separately).
Engineered Lead-Wire System (U.S. Patent #7,356,157)
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
Built in U.S.A. with Global Components
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.
Vented Reinforcement Collar
JL Audio's Vented Reinforcement Collar (VRC®) improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.
Insert Molded Suspension / Coil / Terminal Sub-Assembly (U.S. Patent #7,379,558)
Spiders, voice coils, terminals and lead wires are preassembled, using a patented process, onto a composite carrier for improved precision and reliability.
|
| Subwoofer Size: | 12" |
| Number of Subwoofers: | 1 |
| Enclosure Type: | Ported |
| RMS Power Rating: | 1000 Watts |
| Frequency Response: | 22-200Hz |
| Impedance: | 2 Ohms |
| Color: | Gray/Black |
| Dimensions: | 32 1/4" x 15 1/4" x 13 1/2" (bottom depth) 8 1/8" (top depth) |
| Warranty: | 1 Year |
