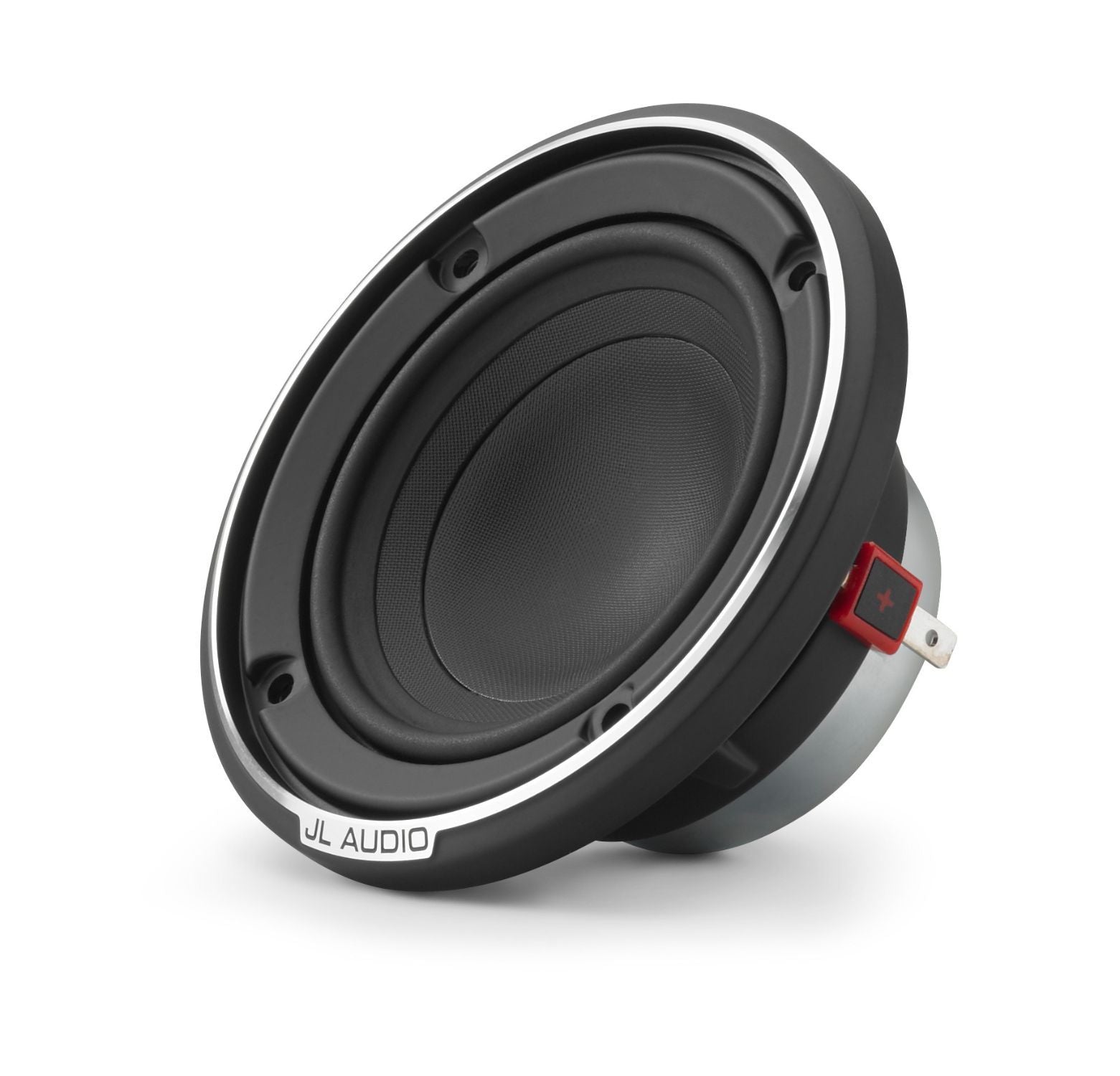

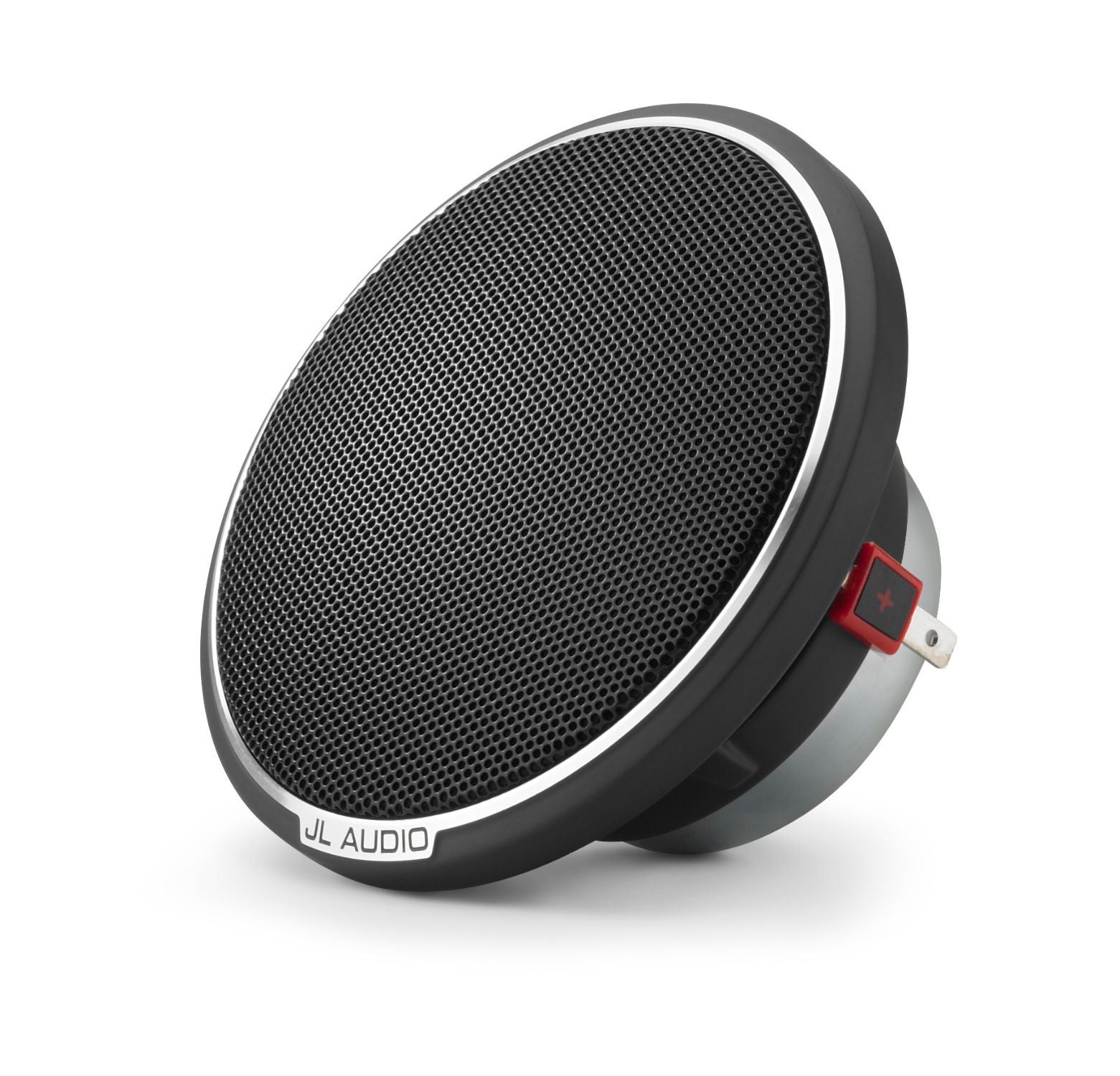

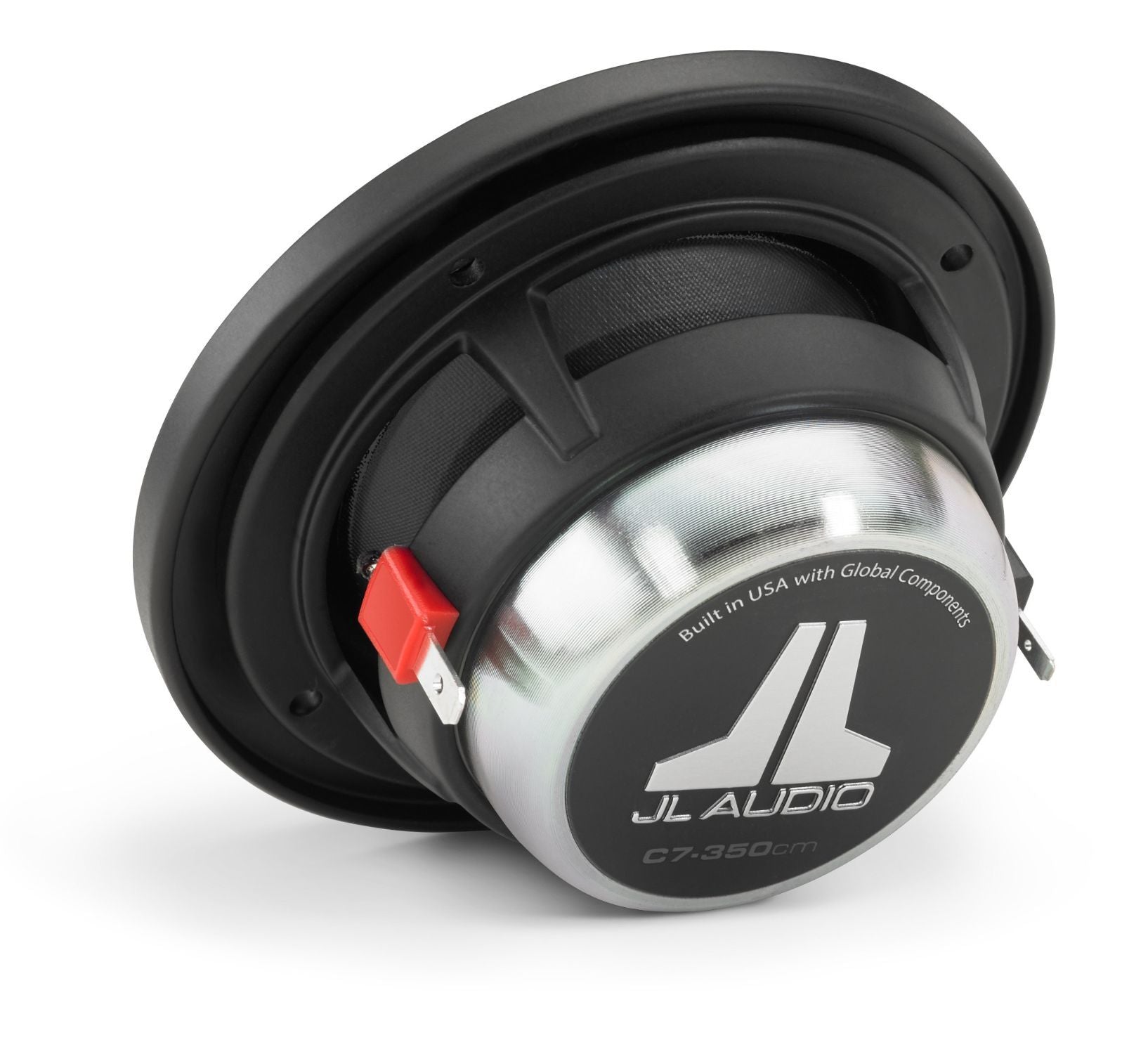

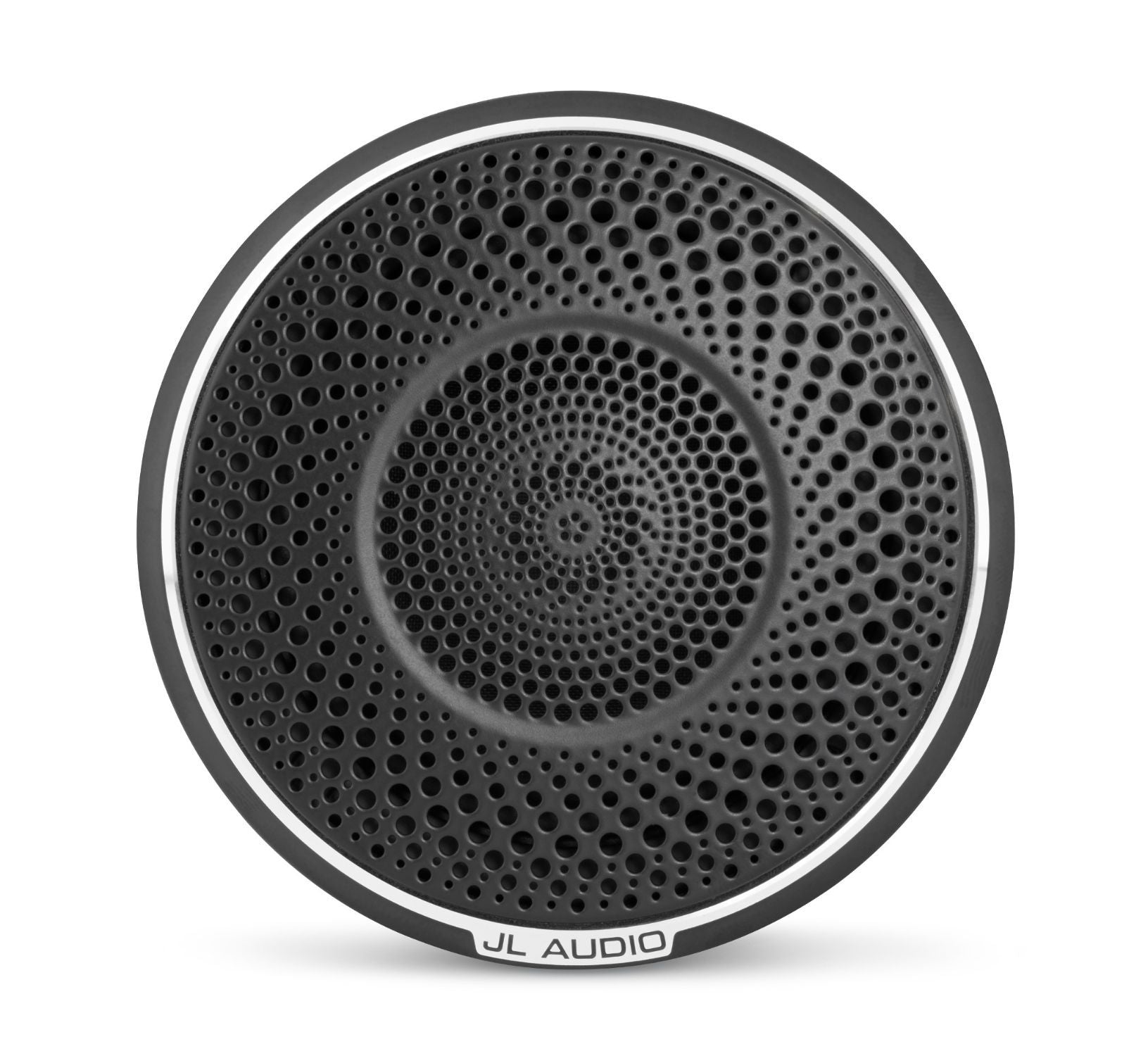

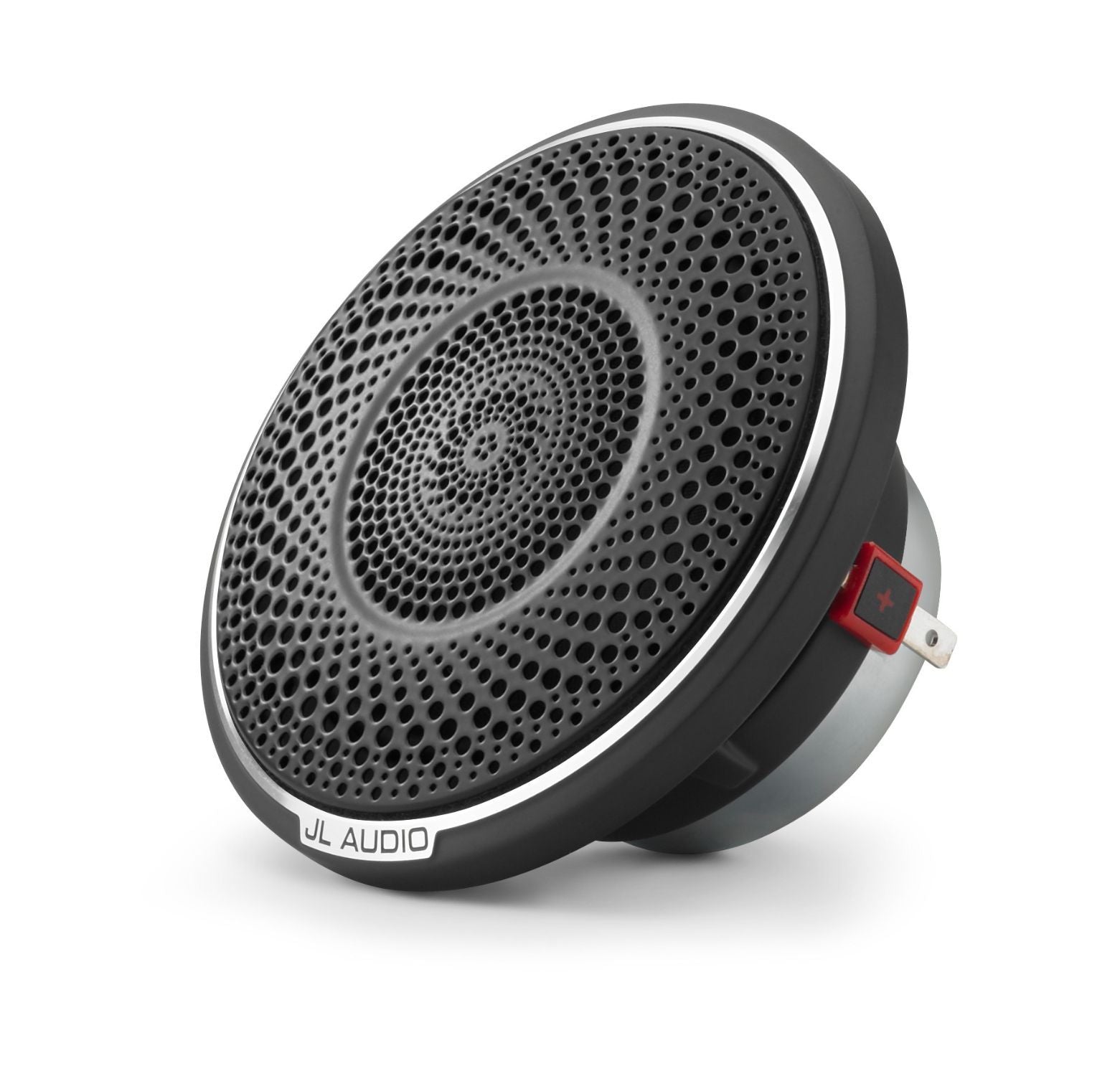

JL Audio C7-350cm C7 Series 3 Component Midrange Speaker - Single 200W RMS for Car Audio Systems & Marine Stereo Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:87453555
Product Description
C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.
The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
|
Speaker Size | 3.5"
|
Design | 1-Way |
Tweeter Design | |
Impedance (Ohms) | 4 |
Tweeter Composition | |
| Woofer Composition | |
| Woofer Surround | Rubber |
| Sensitivity (dB) | 86.5dB |
| Frequency Response (Hz) | 300-10k Hz |
| RMS Power Rating (Watts) | 100 |
| Peak Power Rating (Watts) | 200 |
| Top-mount Depth (Inches) | 1 1/2 |
| Bottom-mount Depth (inches) | 1 11/16 |
| Cutout Diameter (inches) | 2 7/8 |
| Grilles Included | Yes |
| Warranty | 1-Year |
