PRO X 8 Mid Range Loudspeaker with RGB Lighting - 275 Watts RMS 4 Ohm - Perfect for DJ Gigs, Live Performances & Home Theater Systems

Product Description

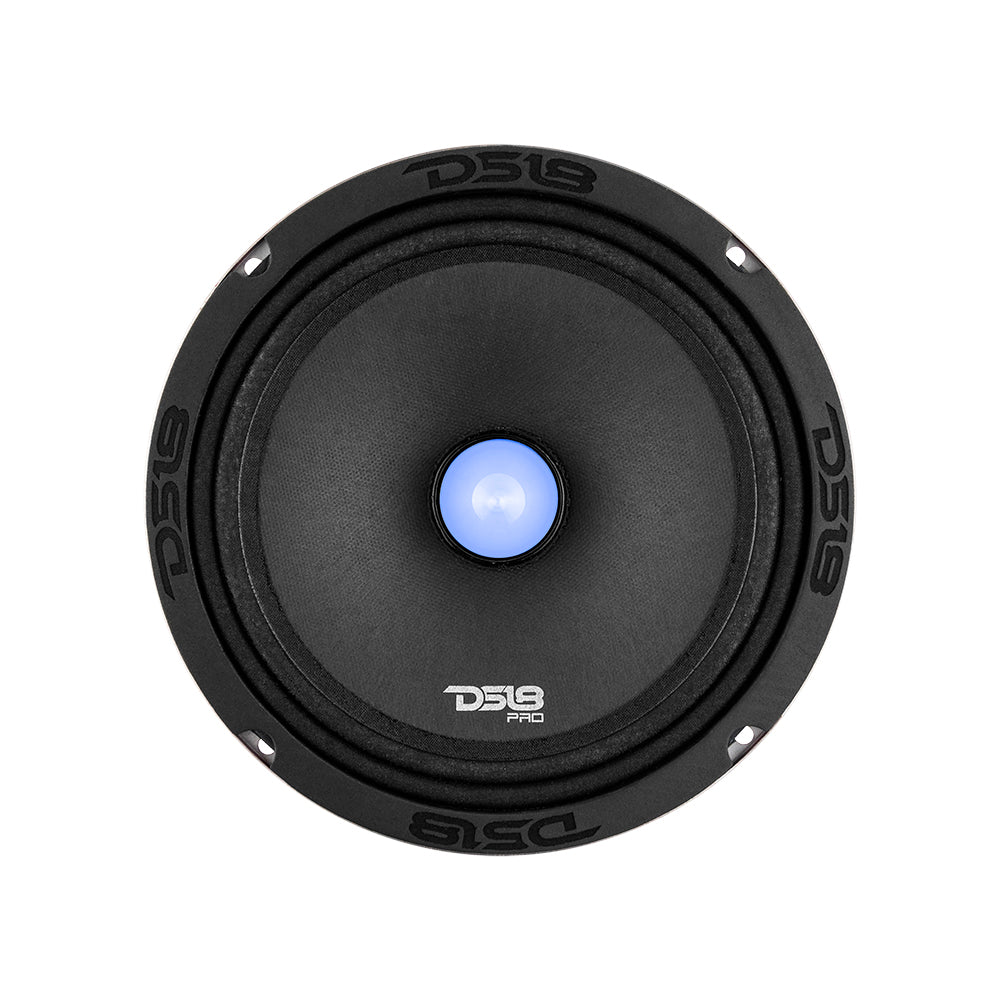

DS18 PRO-X8.4BMRGB 8" Mid-Range Loudspeaker with Bullet & RGB LED Light 550 Watts 4-Ohm

DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular PRO-X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w Peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.

Highlights

• High power pro audio speaker handling 275w RMS and 550w Peak power.
• Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
• Strong ferrite magnet with CCA high wattage voice coil and 96db sensitivity.

Technical Details

Nominal Diameter	8
Nominal Impedance	4 Ohms
RMS Power Handing	275w
MAX Power Handing	550w
Sensitivity (1w/1m)	96dB
Frequency Response	125Hz-16KHz
Recommended HI Pass Crossover	120 Hz
Motor
Voice Coil Diameter	38.6mm / 1.5"
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper
Bullet Material	Translucid ABS with RGB LED
Surround Material	Cloth
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	30 Oz
Displacement Volume	0.046L
Thiele & Small Parameters
Equivalent Volume	Vas 7.1226L
Excursion (one way)	Xmax 9.3mm
Free Air Resonance	Fs 114Hz
Mechanical Factor	Qms 9.052
Electrical Factor	Qes 0.877
Total Factor	Qts 0.8
Mechanical Mass	Mms 17.699g
Mechanical Compliance	Cms 0.11 m/N
BL Factor	BL 6.945
Voice Coil Inductance	Le 5.31mH
Cone Area	Sd 213.82 cm2
CD Resistance	Re 3.2 ohms
Measurements
Overall Diameter	8.19" / 208mm
Overall Depth	3.42" / 87mm
Front Mount Baffle Cutout	7.16" / 182mm
Mounting Depth	3.18" / 81mm
Motor Diameter	4.72" / 120mm
