Product Description

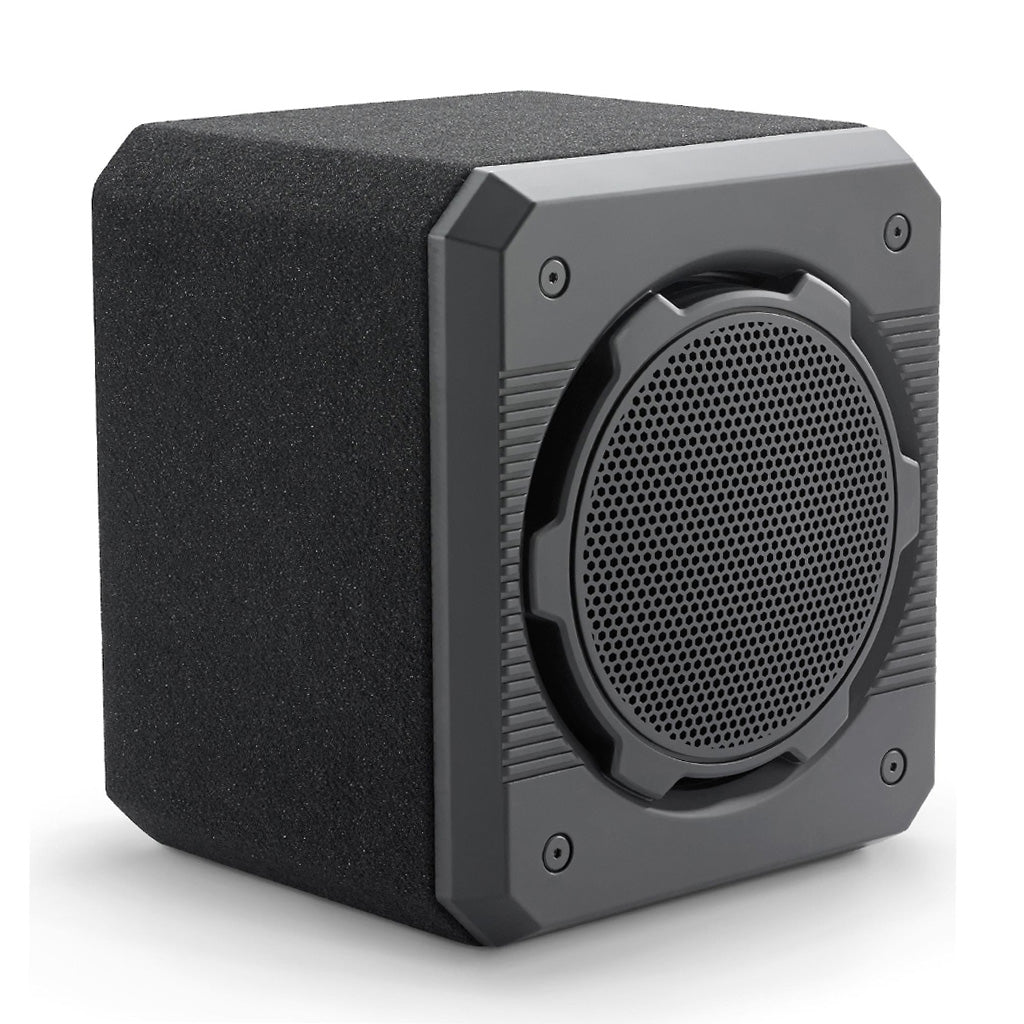

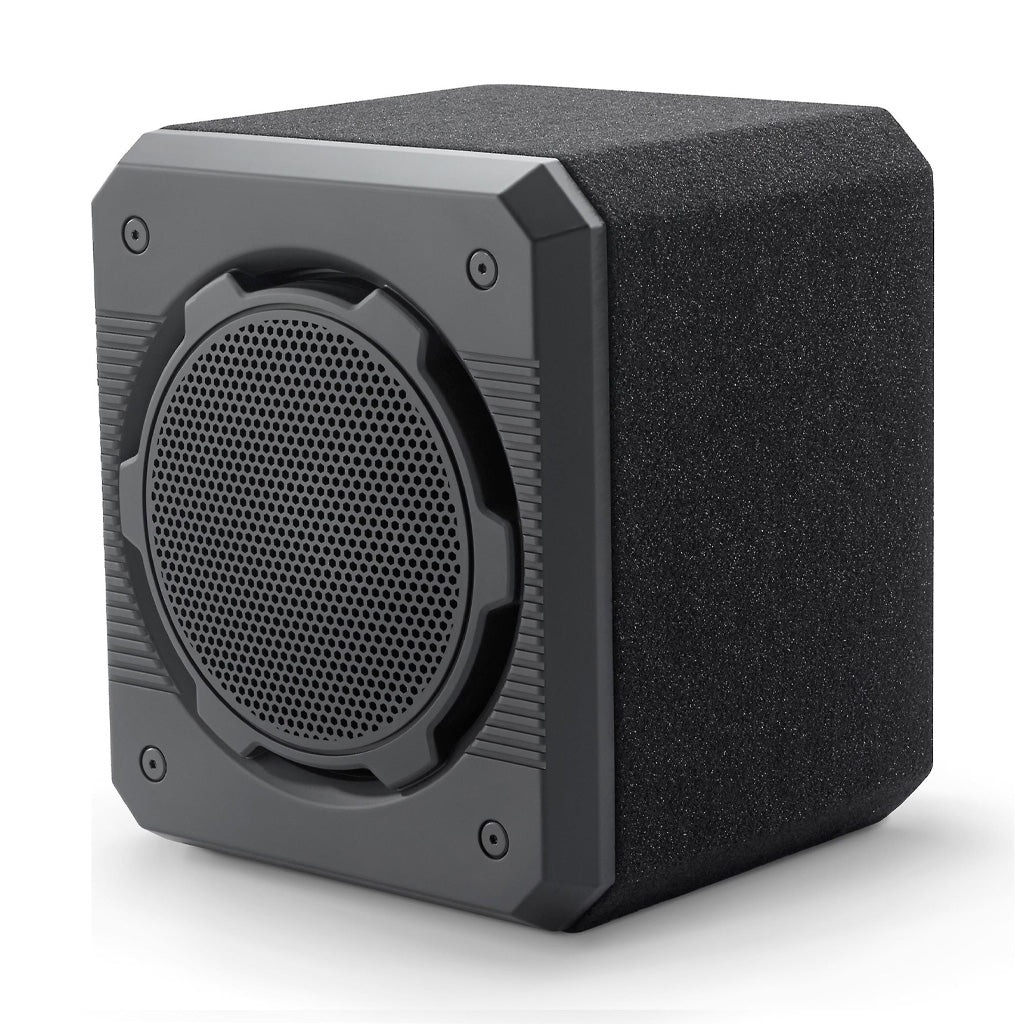

W6v3 ProWedge™ systems incorporate our high-performance W6v3 Subwoofers in quality, MDF-constructed, sealed enclosures that deliver smooth, powerful and articulate bass. The drivers and enclosures are designed and built in our Miramar, Florida factory with global components, incorporating multiple patented technologies.
A super-tough, polymer grille is included to protect the Subwoofer. An attractive “JL AUDIO” logo is embroidered into the black carpet finish.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black high-grade automotive carpet.
V-Groove MDF Construction
This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Pole-Vent Airflow Control - PVAC (U.S. Patent #6,535,613)
In high-powered Subwoofers, thermal management is essential.
W6v2/W6v3 Terminal Jumper System
Information on connecting the dual voice coils using the Terminal Jumper System
Customizable Trim Ring
This removable ring can be painted to match the installation theme and directly receives JL Audio grille mesh inserts (sold separately).
Engineered Lead-Wire System (U.S. Patent #7,356,157)
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
Built in U.S.A. with Global Components
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.
|
| Subwoofer Size: | 10" |
| Number of Subwoofers: | 1 |
| Enclosure Type: | Sealed |
| RMS Power Rating: | 600 Watts |
| Frequency Response: | 22-200Hz |
| Impedance: | 2 Ohms |
| Color: | Black |
| Dimensions: | 12 3/8" x 14 3/8" x 11 3/8" |
| Warranty: | 1 Year |
