JL Audio M10W5 CG TB M Series Marine 10
JL Audio M10W5 CG TB M Series Marine 10JL Audio M10W5 CG TB M Series Marine 10JL Audio M10W5 CG TB M Series Marine 10

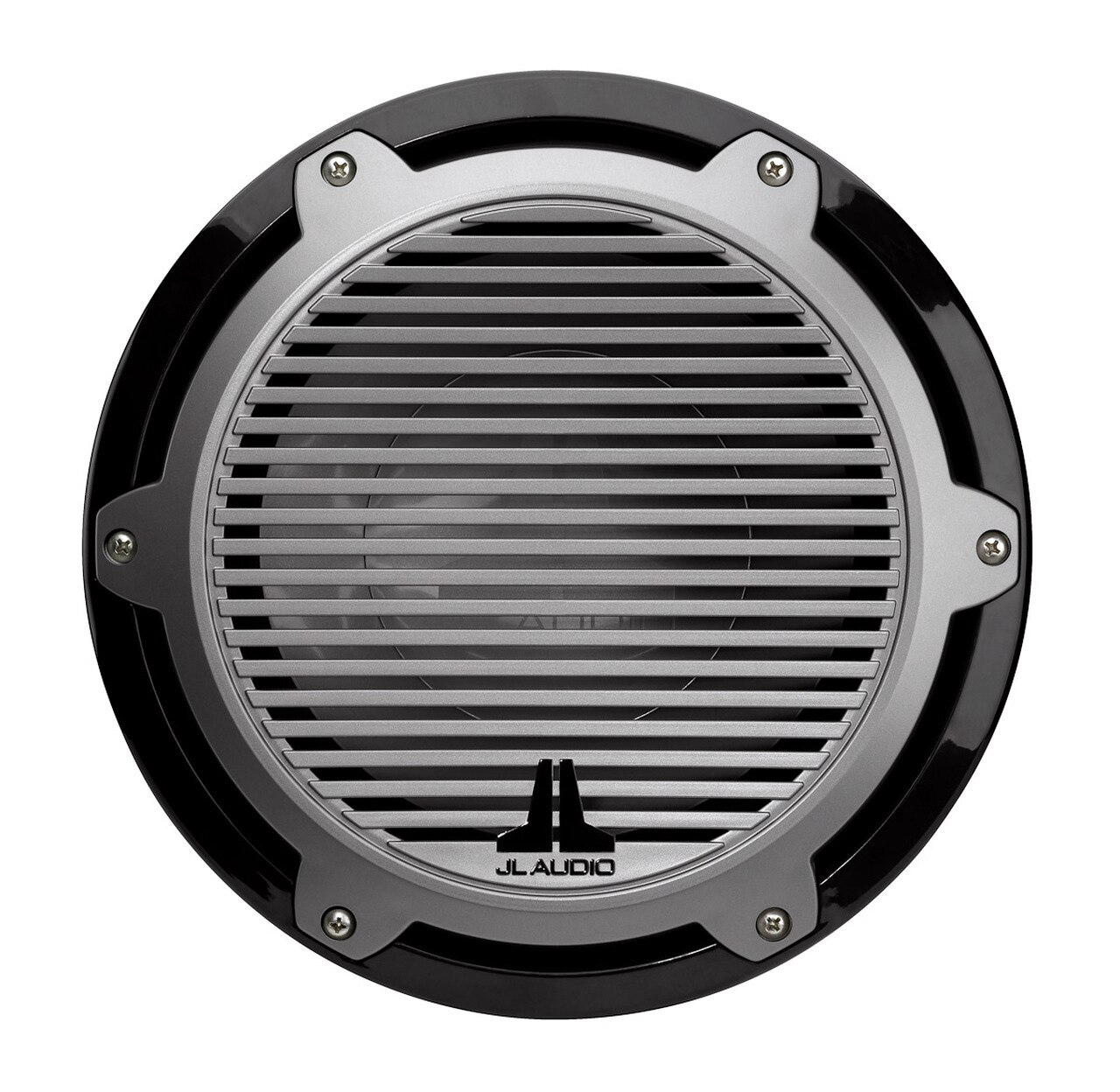

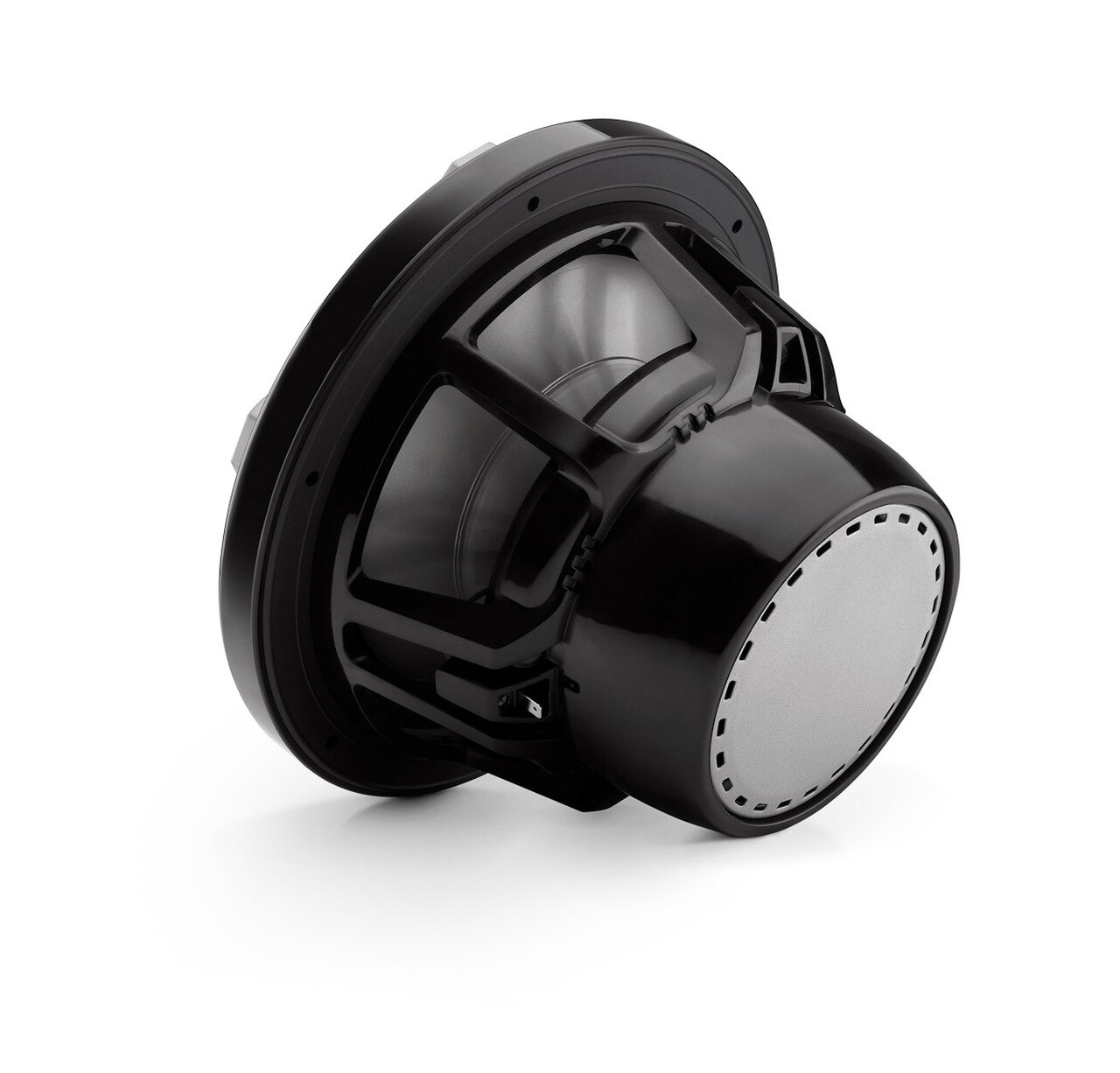

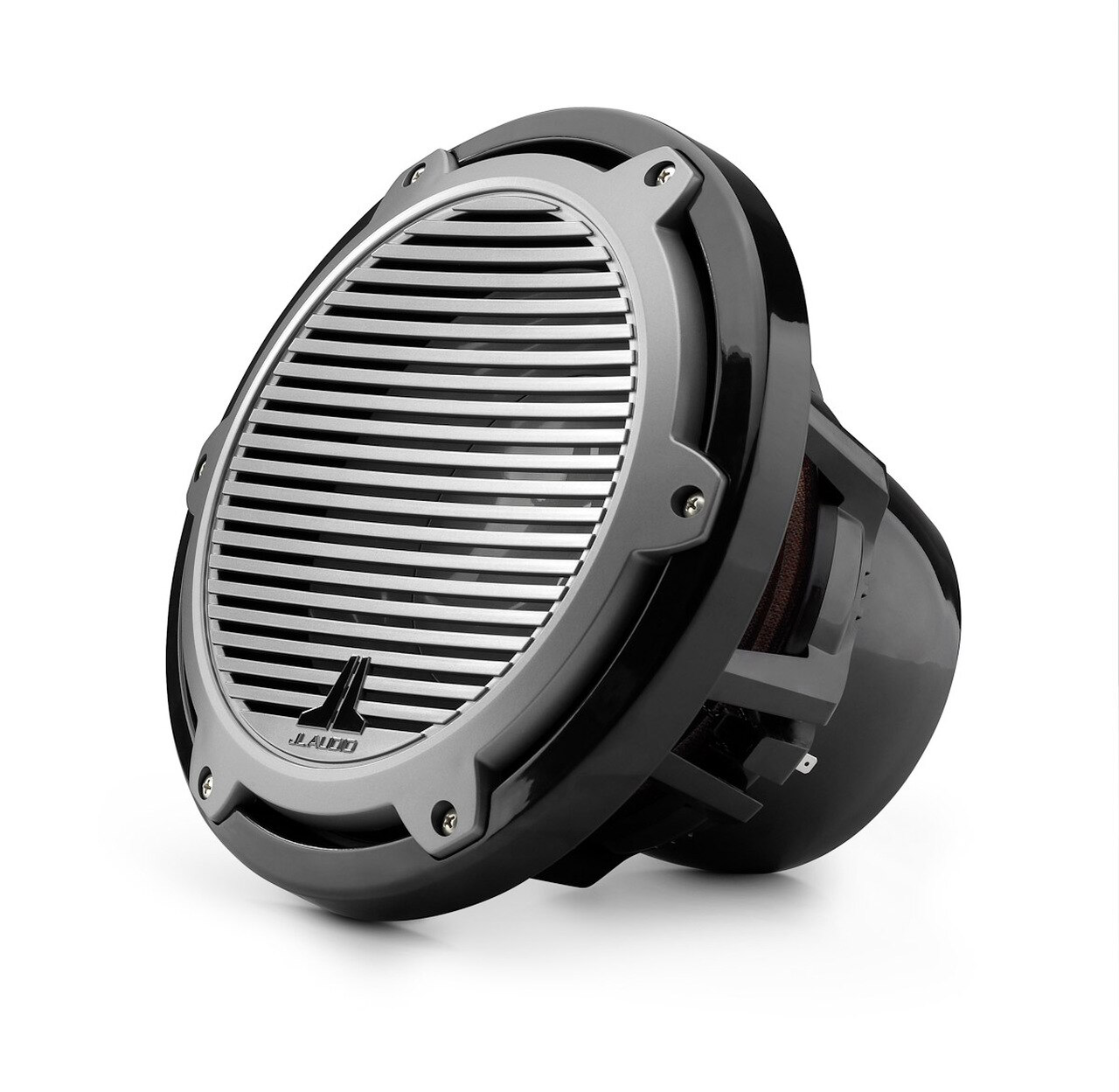

JL Audio M10W5 CG TB M Series Marine 10" 4 Ohm Subwoofer with Titanium/Black Classic Grille - 250W Power for Boats, Yachts & Marine Audio Systems

$181.49 $329.99 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:19 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:96864154

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

General Features:

  • JL Audio 10" M-Series Marine Subwoofer for an Enclosure
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13.2 mm¬†
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Recommended Sealed Enclosure: 0.875ft¬≥
  • Recommended Ported Enclosure: 1.25ft¬≥
  • Infinite Baffle Use: No
  • Color:¬†Titanium Grille w/ Black Frame
  • Matching Amplifiers:
    • JL Audio M200/2¬†- Class D Marine 2-Channel Amplifier
    • JL Audio M600/6¬†- Class D Marine 6-Channel Amplifier
  • Authorized Internet Dealer
  • 1-Year Manufacturer's Warranty
|
Weather resistanceYes
LED Illumination:No

Size

10-inch

Voice Coil

Single

Impedance

4 ohms

RMS Power Rating (Watts)

250

Peak Power Rating (Watts)

500
Cone Material

Injection-Molded Mica-Filled Polypropylene

Surround Material

Synthetic Rubber

Free Air

No

Sensitivity

86.7dB

Frequency Response


Top Mount Depth (Inches)

5.93"

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

8.875"

Vas (liters)


Fs (Hz)


Xmax (millimeters)

13.2mm

Warranty
1 Year
