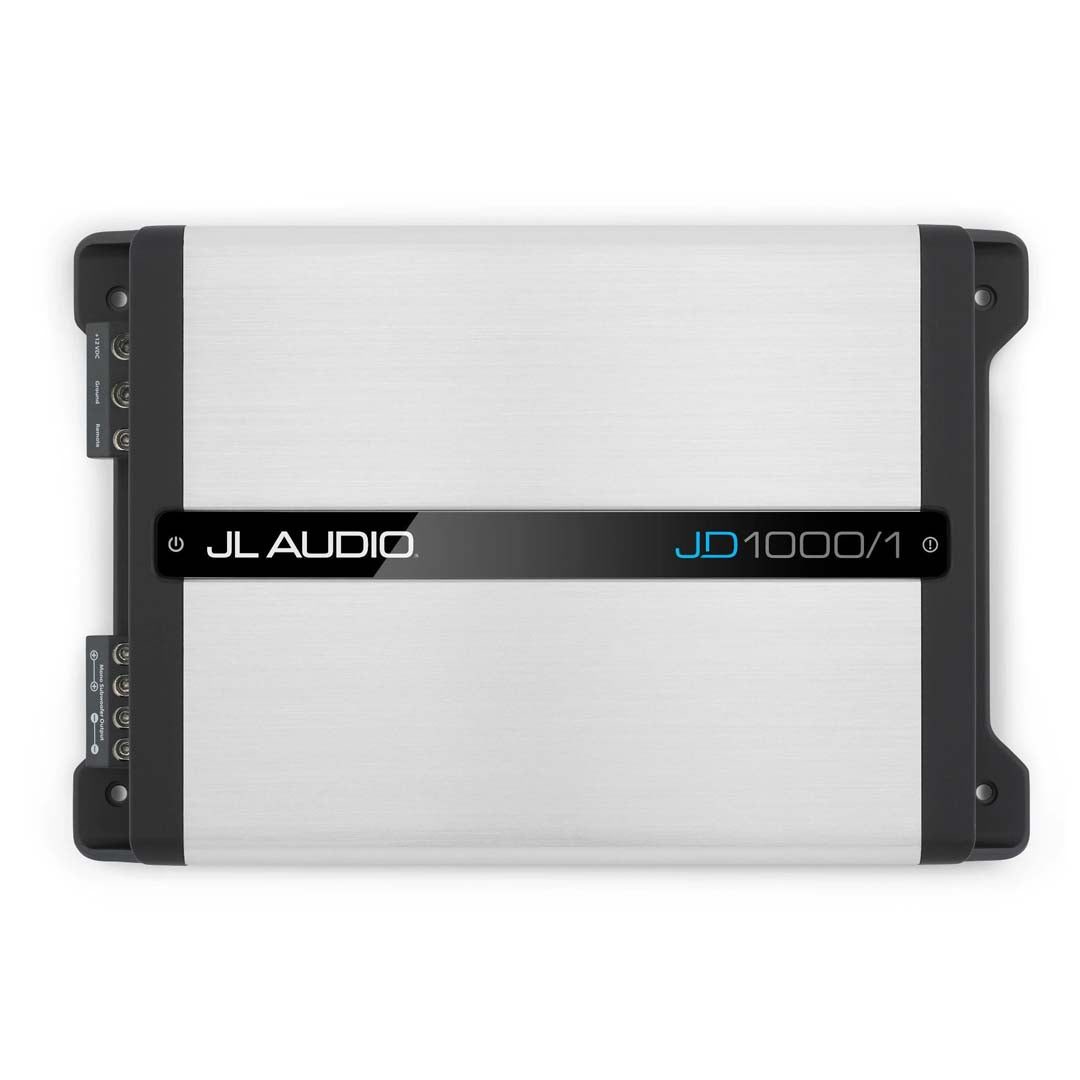

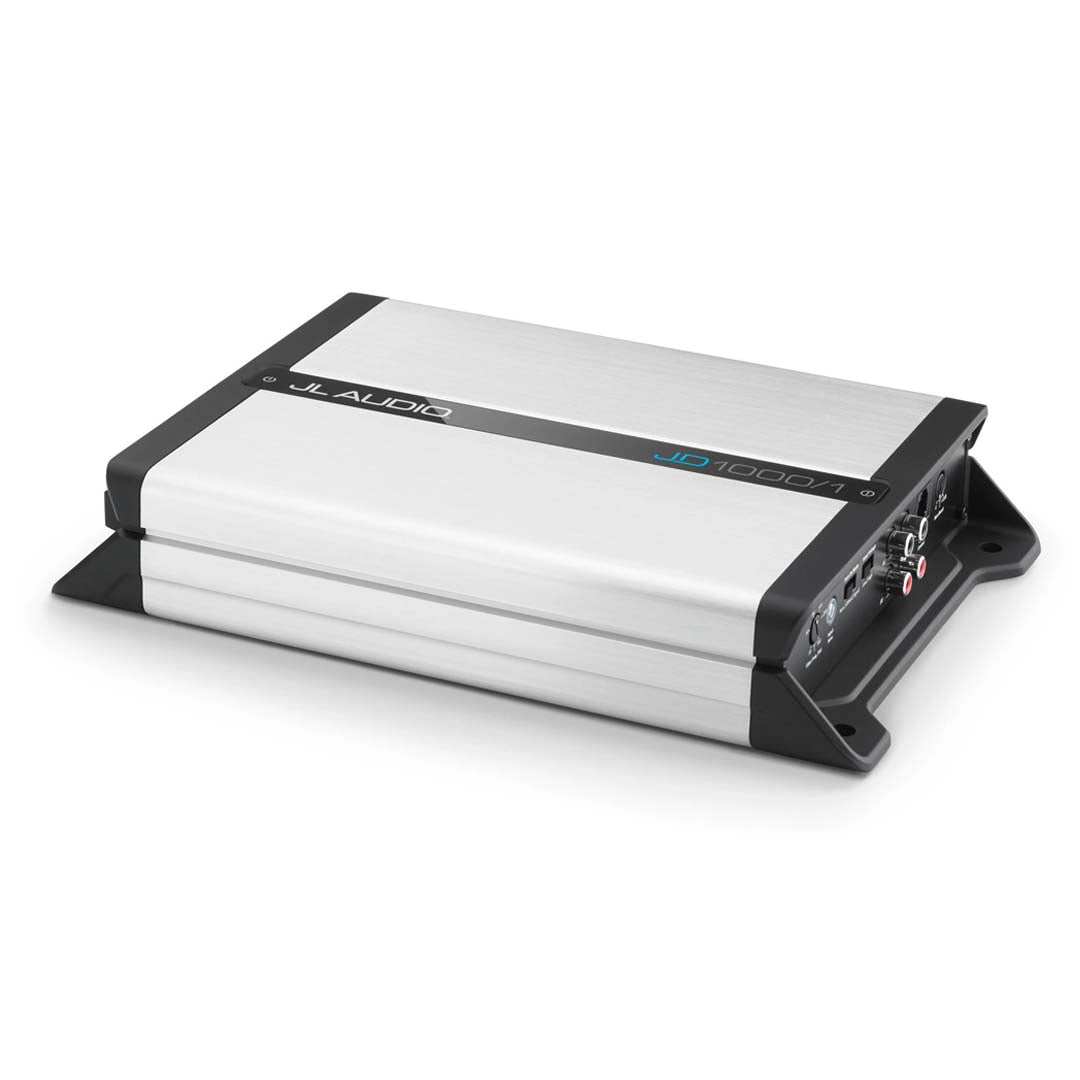

JL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound Systems
JL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound SystemsJL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound SystemsJL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound SystemsJL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound SystemsJL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound Systems

JL Audio JD1000/1 JD Series Class D Monoblock Subwoofer Amplifier - 1000W RMS Power for Car Audio & Home Theater Bass Boost - Perfect for Trucks, SUVs & Custom Sound Systems

$219.99 $399.99 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:19 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:98422694

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

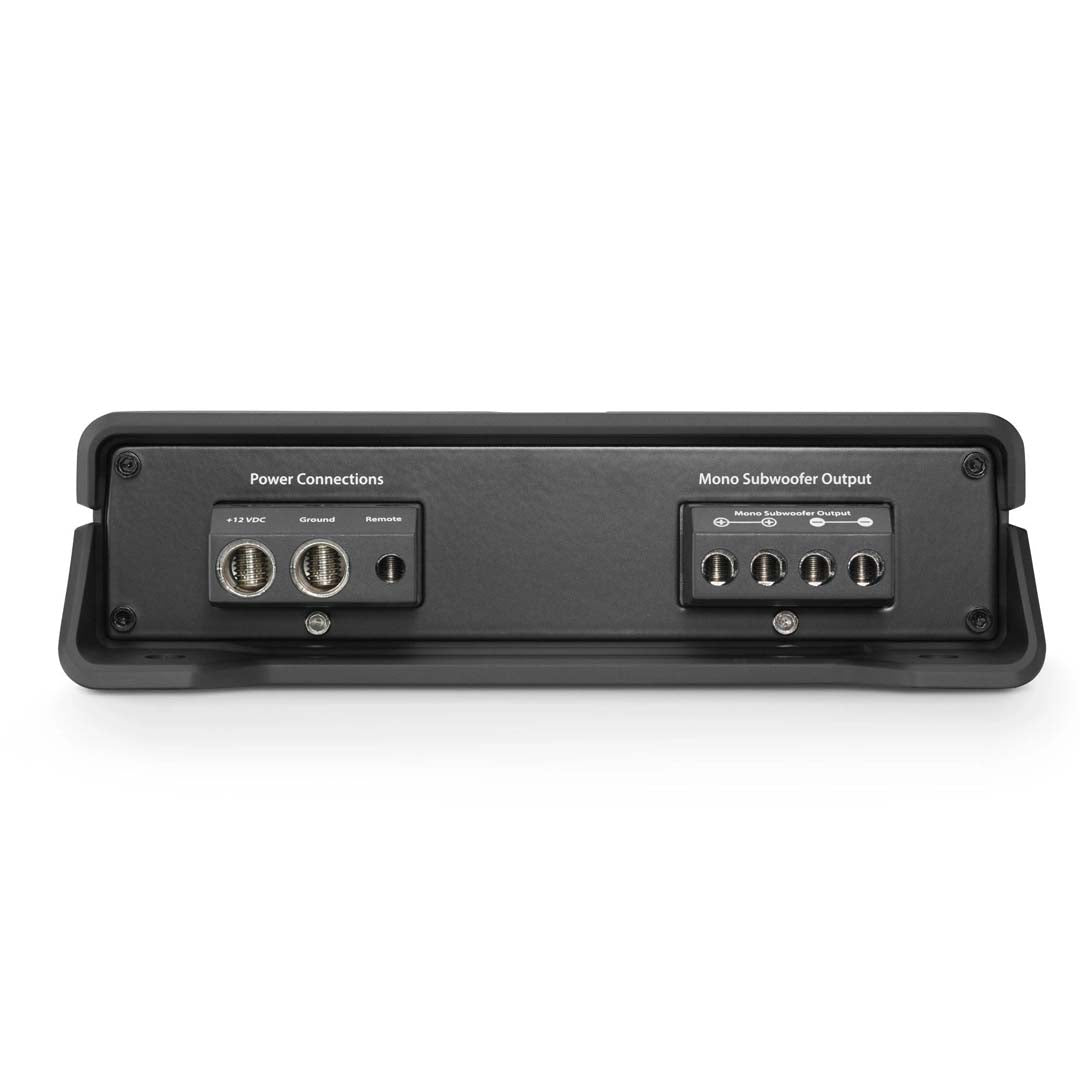

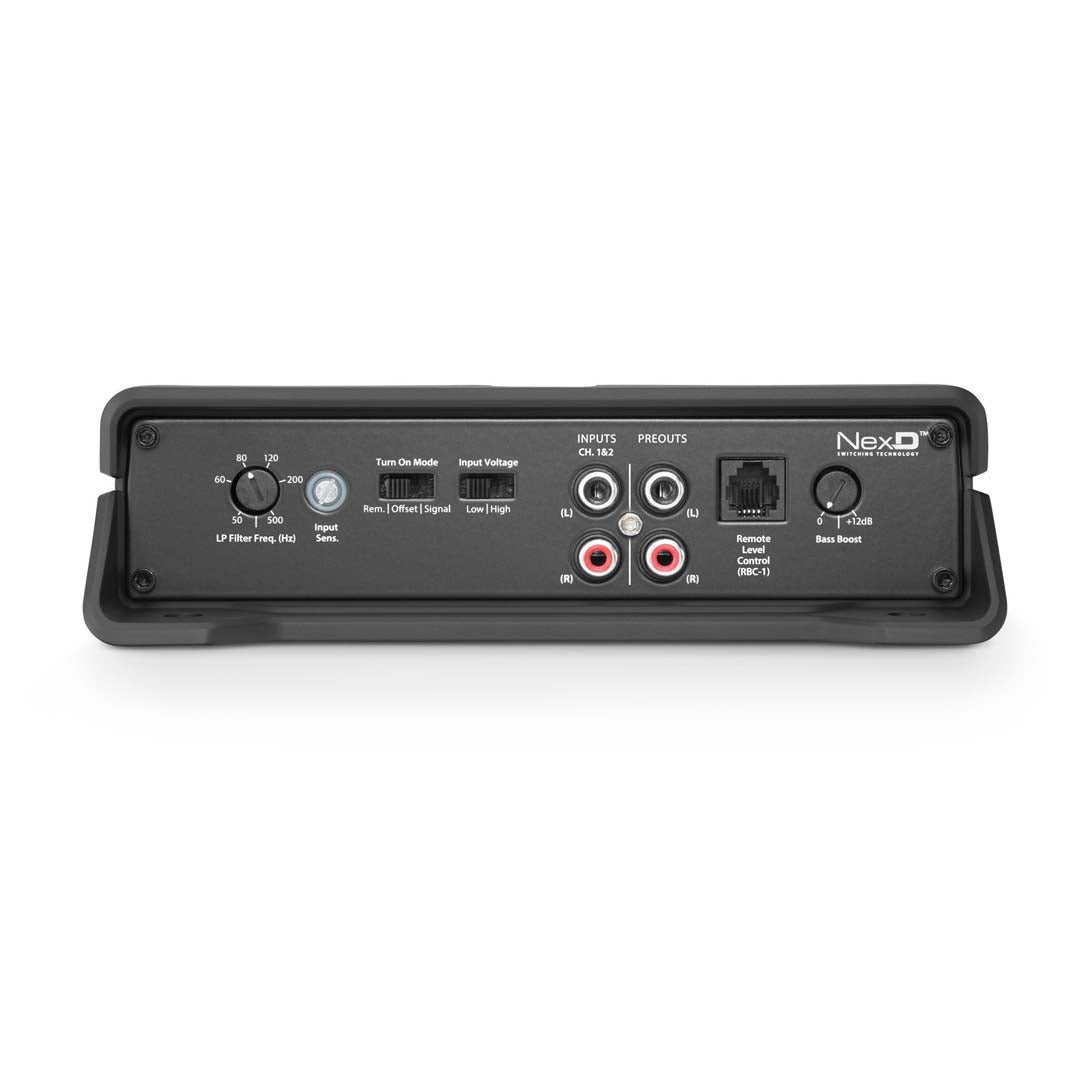

The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

NexD™ Switching Technology

NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.


Differential-Balanced Inputs

JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

|


Number of Channels

1

Class

D

Peak Power Rating (Watts)


RMS Power Rating (Watts x Channels) - 4 Ohms



600 x 1

RMS Power Rating (Watts x Channels) - 2 Ohms



1000 x 1
RMS Power Rating (Watts x Channels) - 1.5 Ohm



N/A
RMS Power Rating - Bridged 3-8 OhmsN/A
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

N/A

THD at Rated RMS Power

1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass
N/A
High Pass Crossover Frequency (Hz)

N/A

Low Pass Crossover Frequency (Hz)
50-500hz
Signal-to-Noise Ratio

80dB

Bass Boost
0-12dB
Bass Remote Included

No

Fuse Rating80A
CEA-2006 CompliantYes
Maximum Power Wire Gauge Size4 Gauge
Warranty1 Year
